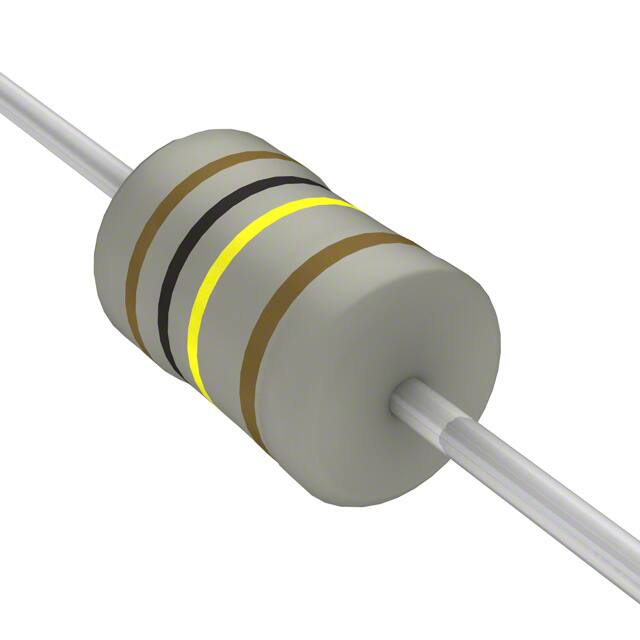

LR2F100K

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Height - Seated (Max) :

--

Failure Rate :

--

Package Shape :

TUBULAR PACKAGE

Lead Diameter :

0.55 mm

Product :

Metal Film Resistors General Purpose

Packing Method :

Ammo Pack

Mounting Style :

PCB Mount

Minimum Operating Temperature :

- 55 C

Temperature Coefficient :

100 ppm/°C

Type :

FIXED RESISTOR

RoHS :

Details

Working Voltage :

350 V

Supplier Device Package :

Axial

Composition :

Metal Film

Terminal Finish :

Tin (Sn)

Surface Mount :

No

Diameter :

3.5 mm

Brand :

TE Connectivity / Holsworthy

Construction :

Tubular

Additional Feature :

PRECISION

Package / Case :

Axial

Product Type :

Metal Film Resistors

ECCN Code :

EAR99

Reach Compliance Code :

Compliant

Terminal Shape :

Wire

JESD-609 Code :

e3

Packaging :

Tape and Box (TB)

Resistance :

100000 Ω

Operating Temperature :

-55°C ~ 155°C

Mounting Feature :

THROUGH HOLE MOUNT

Pbfree Code :

yes

Termination Style :

Axial

Power Rating :

750 mW (3/4 W)

Package Length :

9.7 mm

Resistor Type :

FIXED RESISTOR

Package :

Tape and Box (TB)

Rated Temperature :

70 °C

Product Category :

Metal Film Resistors - Through Hole

Number of Terminations :

2

Voltage Rating :

350 V

Length :

9.7 mm

Factory Lead Time :

15 Weeks, 6 Days

Tolerance :

1%

Power (Watts) :

0.75W, 3/4W

Size / Dimension :

0.138 Dia x 0.382 L (3.50mm x 9.70mm)

Rated Power Dissipation (P) :

0.75 W

Product Status :

Active

Maximum Operating Temperature :

+ 155 C

Features :

--

Number of Terminals :

2

Series :

LR, Neohm
