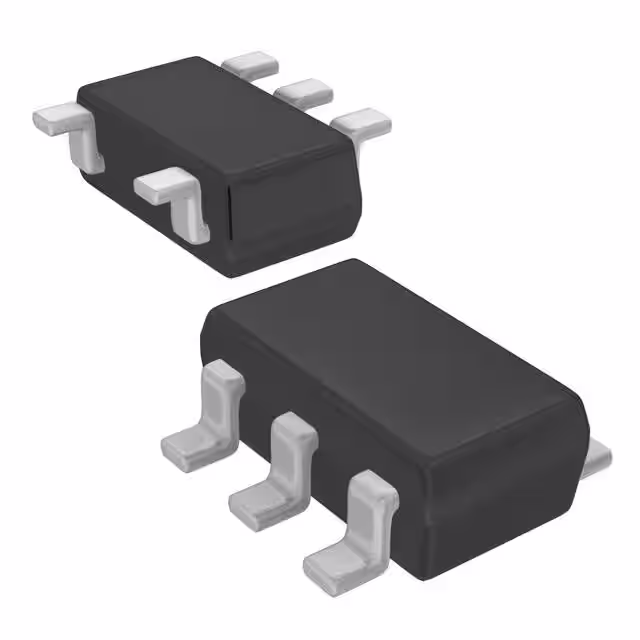

MIC2142BM5-TR

Manufacturer :

Microchip Technology

Product Category :

Voltage Regulators - DC DC Switching Regulators

Control Mode :

CURRENT-MODE

Topology :

Boost, Flyback, SEPIC

Manufacturer :

Rochester Electronics LLC

Switching Frequency-Max :

365 kHz

Reach Compliance Code :

Unknown

Packaging :

Tape and Reel (TR)

Terminal Form :

Gull wing

Mount :

Surface Mount

Number of Functions :

1

Width :

1.6 mm

Control Technique :

HYSTERETIC CURRENT MODE

Analog IC - Other Type :

SWITCHING REGULATOR

Number of Outputs :

1

Additional Feature :

ALSO HAS ADJUSTABLE OUTPUT VOLTAGES UPTO 22V; HAS PWM CONTROL TECHNIQUE

Output Voltage :

22 V

Min Operating Temperature :

-40 °C

Min Output Voltage :

2.2 V

RoHS :

Non-Compliant

Synchronous Rectifier :

No

JESD-30 Code :

R-PDSO-G5

Lead Free :

Contains Lead

Max Operating Temperature :

85 °C

Switching Frequency :

330 kHz

Temperature Grade :

Industrial

Number of Pins :

5

Max Input Voltage :

16 V

Surface Mount :

yes

Package Shape :

RECTANGULAR

Terminal Pitch :

0.95 mm

Max Output Voltage :

22 V

Seated Height-Max :

1.45 mm

Number of Terminals :

5

Input Voltage-Nom :

3.6 V

Length :

2.9 mm

Min Input Voltage :

2.2 V

Terminal Position :

Dual

Output Type :

Adjustable

Output Configuration :

Positive

Switcher Configuration :

Boost

Output Current :

200 mA

Pin Count :

5
