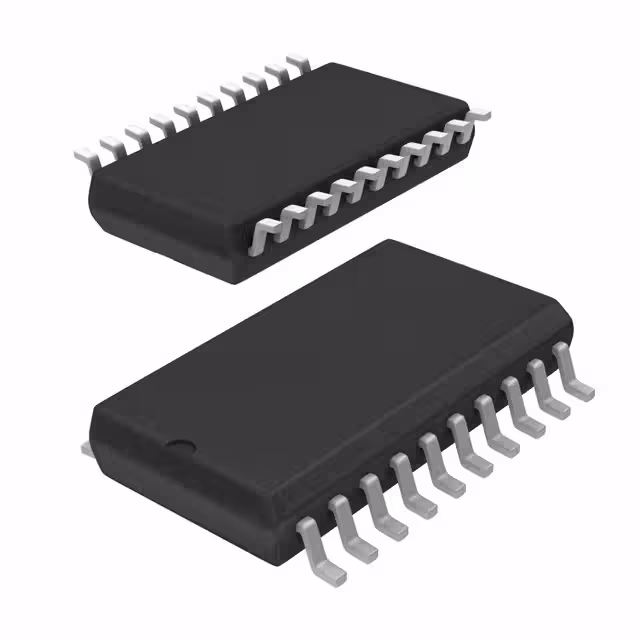

MIC2177-3.3BWM-TR

Manufacturer :

Microchip Technology

Product Category :

Voltage Regulators - DC DC Switching Regulators

Length :

12.83mm

Reach Compliance Code :

Compliant

Switching Frequency-Max :

240kHz

Temperature Grade :

Industrial

RoHS Status :

Non-RoHS Compliant

Qualification Status :

Not Qualified

Output Current :

2.5 A

Packaging :

Tape and Reel (TR)

Number of Terminals :

20

Operating Temperature (Max) :

85°C

Min Output Voltage :

3.3 V

Analog IC - Other Type :

SWITCHING REGULATOR

Synchronous Rectifier :

No

Number of Outputs :

1

Peak Reflow Temperature (Cel) :

240

Control Mode :

CURRENT-MODE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Control Technique :

PULSE WIDTH MODULATION

JESD-609 Code :

e0

JESD-30 Code :

R-PDSO-G20

Input Voltage-Nom :

7V

Output Configuration :

Positive

Time@Peak Reflow Temperature-Max (s) :

30

Lead Free :

Contains Lead

HTS Code :

8542.39.00.01

Input Voltage (Min) :

4.5V

Surface Mount :

yes

Switcher Configuration :

Buck

Input Voltage (Max) :

16.5V

Output Current-Max :

6A

Min Operating Temperature :

-40 °C

ECCN Code :

EAR99

Max Input Voltage :

16.5 V

Pin Count :

20

Terminal Form :

Gull wing

Min Input Voltage :

4.5 V

Terminal Pitch :

1.27mm

Seated Height-Max :

2.64mm

Output Voltage :

3.3V

Number of Functions :

1

Operating Temperature (Min) :

-40°C

Terminal Position :

Dual

Width :

7.52mm

Max Operating Temperature :

125 °C

Mount :

Surface Mount

Terminal Finish :

Tin/Lead (Sn85Pb15)

Output Type :

FIXED

RoHS :

Non-Compliant

Switching Frequency :

200 kHz
