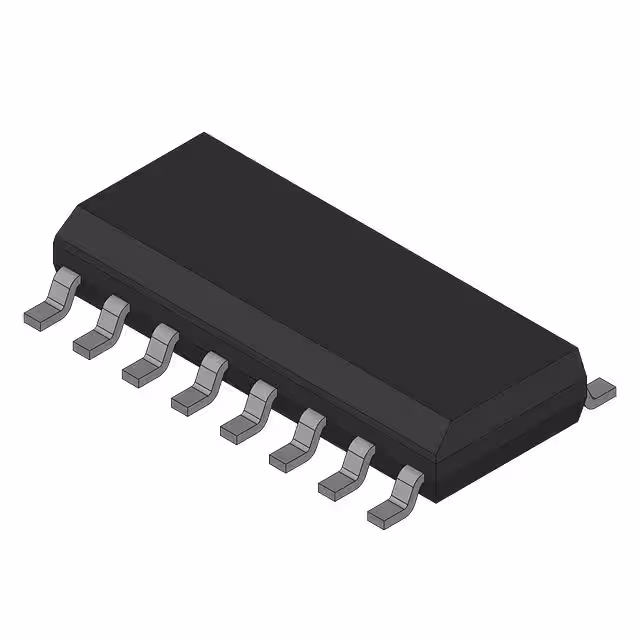

MIC2182-3.3BM

Manufacturer :

Microchip Technology

Product Category :

DC DC Switching Controllers

Seated Height-Max :

1.895 mm

Output Type :

Transistor Driver

Switching Frequency-Max :

330 kHz

Control Mode :

CURRENT-MODE

Series :

-

Function :

Step-Down

Switcher Configuration :

Push-Pull

Manufacturer :

Rochester Electronics LLC

Surface Mount :

yes

Terminal Finish :

TIN LEAD

Mounting Type :

Surface Mount

Number of Functions :

1

Number of Outputs :

1

Width :

3.9 mm

Output Configuration :

Positive

Product Status :

Active

Package / Case :

16-SOIC (0.154, 3.90mm Width)

Length :

9.9 mm

Number of Terminals :

16

Operating Temperature :

-40°C ~ 85°C (TA)

Output Phases :

1

JESD-609 Code :

e0

Synchronous Rectifier :

yes

Topology :

Buck

Voltage - Supply (Vcc/Vdd) :

4.5V ~ 32V

Temperature Grade :

Industrial

Terminal Position :

Dual

Analog IC - Other Type :

SWITCHING CONTROLLER

Peak Reflow Temperature (Cel) :

240

Terminal Form :

Gull wing

Reach Compliance Code :

Unknown

Supplier Device Package :

16-SOIC

Pin Count :

16

Serial Interfaces :

-

Control Features :

Enable, Soft Start

JESD-30 Code :

R-PDSO-G16

Qualification Status :

COMMERCIAL

Input Voltage-Nom :

15 V

Package Shape :

RECTANGULAR

Pbfree Code :

yes

Package :

Bulk

Control Technique :

PULSE WIDTH MODULATION

Frequency - Switching :

300kHz

Clock Sync :

yes

Technology :

BICMOS

Terminal Pitch :

1.27 mm

Duty Cycle (Max) :

86%
