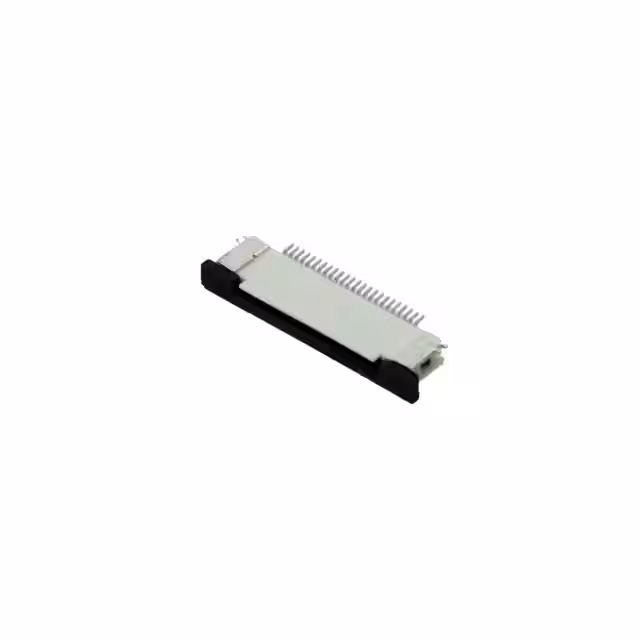

PCA-6-LA-24-HL-3
Or copy the link below:
- Mfr.Part #
- PCA-6-LA-24-HL-3
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- FPC/FFC CONNECTOR ZIF TYPE .5M
- Stock
- 458
- In Stock ：
- 458
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Series :
- PCA
- Packaging :
- Tube
- Pitch :
- 0.020 0.50mm
- Material Flammability Rating :
- UL94 V-0
- Actuator Color :
- Black
- Current Rating (Amps) :
- 0.5A
- Flat Flex Type :
- FFC, FPC
- Factory Lead Time :
- 9 Weeks
- Operating Temperature :
- -25°C~85°C
- FFC, FCB Thickness :
- 0.30mm
- Contact Finish :
- Tin
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Housing Material :
- Thermoplastic
- Housing Color :
- Natural
- Mounting Type :
- Surface Mount, Right Angle
- Termination :
- Solder
- Connector/Contact Type :
- Contacts, Bottom
- Cable End Type :
- Straight
- Height Above Board :
- 0.091 2.30mm
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- Phosphor Bronze
- Locking Feature :
- Slide Lock
- Number of Positions :
- 24
- Datasheets
- PCA-6-LA-24-HL-3
PCA Series FFC, FPC Contacts, Bottom Tube 0.020 0.50mm Solder 24 Positions Surface Mount, Right Angle Tin -25°C~85°C 0.5A
PCA-6-LA-24-HL-3 Overview
This device is mounted in the Surface Mount, Right Angle position.It has been determined that a Tube case is necessary to package the product.There is a product in the PCA Series.There are a number of advantages to its Solder Retention, Zero Insertion Force (ZIF) feature.As a result, the device runs at -25°C~85°C Operating Temperature.
PCA-6-LA-24-HL-3 Features
PCA series
PCA-6-LA-24-HL-3 Applications
There are a lot of Adam Tech
PCA-6-LA-24-HL-3 FFC, FPC (Flat Flexible) Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
