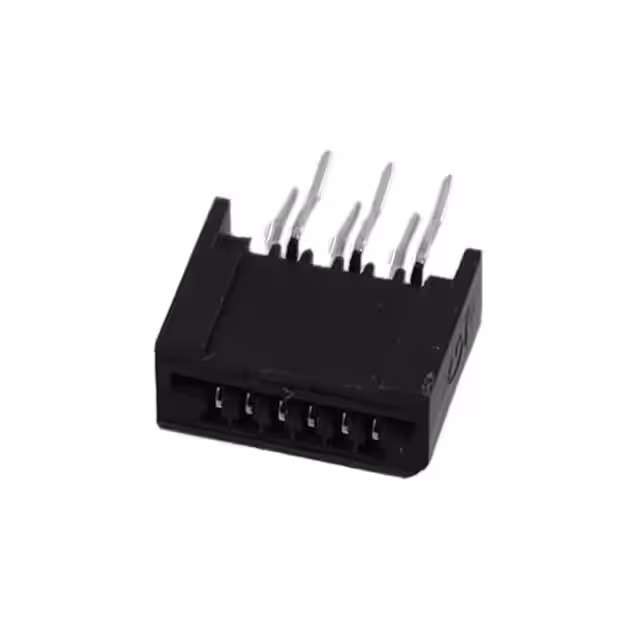

PCB-B-06-T-25
Or copy the link below:
- Mfr.Part #
- PCB-B-06-T-25
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- FPC/FFC CONNECTOR, LIF TYPE, 1.2
- Stock
- 4,958
- In Stock ：
- 4,958
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Insulator Color :
- Black
- Operating Temperature (Min) :
- -40°C
- Total Number of Contacts :
- 6
- PCB Contact Pattern :
- STAGGERED
- Termination Type :
- SOLDER KINKED LEADS
- Mounting Type :
- BOARD
- Contact Finish - Mating :
- SN ON CU
- Insertion Force-Max :
- LIF N
- Body Breadth :
- 0.197 inch
- Reference Standard :
- UL, CSA
- Contact Pattern :
- RECTANGULAR
- Terminal Pitch :
- 2.4892mm
- Number of Rows :
- 1
- PCB Contact Row Spacing :
- 2.4892 mm
- Contact Resistance :
- 30mOhm
- Contact Style :
- BELLOWED TYPE
- Number Of PCB Rows :
- 2
- Dielectric Withstanding Voltage :
- 500VAC V
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Body Depth :
- 0.315 inch
- Operating Temperature (Max) :
- 85°C
- Insulation Resistance :
- 500000000Ohm
- Reliability :
- COMMERCIAL
- Mounting Option 1 :
- LOCKING
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Body Length or Diameter :
- 0.442 inch
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- Phosphor Bronze
- Factory Lead Time :
- 9 Weeks
- Mating Contact Pitch :
- 0.049 inch
- Rated Current (Signal) :
- 1A
- Mounting Style :
- Straight
- Connector Type :
- FFC/FPC CONNECTOR
- Datasheets
- PCB-B-06-T-25
BOARD
PCB-B-06-T-25 Overview
The packaging is FFC/FPC CONNECTOR.Mounting type BOARD is selected for the device.
PCB-B-06-T-25 Features
PCB-B-06-T-25 Applications
There are a lot of Adam Tech
PCB-B-06-T-25 FFC, FPC (Flat Flexible) Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
