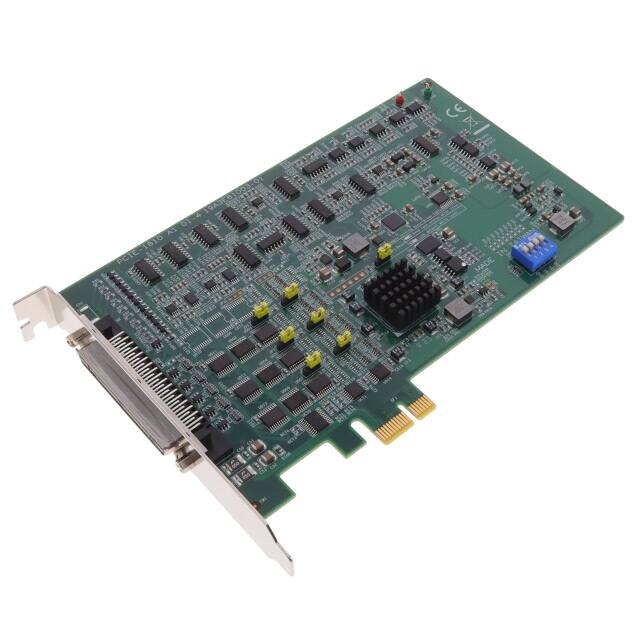

PCIE-1810-AE

Manufacturer :

Advantech

Product Category :

Resolution :

12 bit

Output Voltage :

Logic 0: 0.8 V max.

Series :

PCIE-1810

Current Rating :

112 mA, 488 mA

Number of Outputs and Type :

2 - Analog, 24 - Digital

Input Range :

Software programmable

Power Consumption :

Typical: 3.3 V @ 488 mA

Interface Type :

IDC Ribbon Cable

Bidirectional Channels :

24

RoHS :

Details

Number of Inputs and Type :

16 - Analog (Single-Ended, 8 Differential), 24 - Digital

Display Type :

NONE

Number of Channels :

16 Channel

Output Range :

Software programmable

Input Impedance :

1 GW

Product :

Cards

Slew Rate :

5 mA

Connection Method :

IDC Ribbon Cable

Sampling Rate (Per Second) :

800k

Maximum Operating Temperature :

+ 60 C

Type :

DAQ

Package :

Box

Product Status :

Active

Minimum Operating Temperature :

0 C

Operation Mode :

Static update, Waveform Generation

Function :

Counter/Timer

Accuracy :

INLE: ± 1 LSB, DNLE: ± 1 LSB
