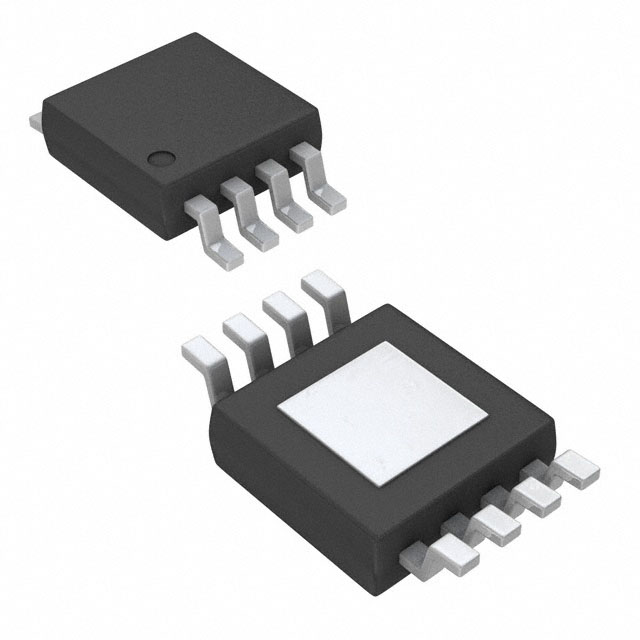

PI5PD2069UEE

Manufacturer :

Diodes Incorporated

Product Category :

Power Distribution Switches, Load Drivers

Ratio - Input:Output :

1:1

Supply Voltage-Min (Vsup) :

2.7V

ECCN Code :

EAR99

Output Type :

N-Channel

Analog IC - Other Type :

POWER SUPPLY SUPPORT CIRCUIT

Interface :

On/Off

Voltage - Supply (Vcc/Vdd) :

Not Required

Output Configuration :

High Side

Supply Voltage-Max (Vsup) :

5.5V

Voltage - Load :

2.7V~5.5V

Current - Output (Max) :

2.1A

Number of Functions :

1

Terminal Form :

Gull wing

Operating Temperature :

-40°C~105°C TJ

Width :

3mm

Adjustable Threshold :

No

RoHS Status :

RoHS Compliant

Length :

3mm

Terminal Position :

Dual

Fault Protection :

Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO

Switch Type :

USB Switch

Supply Voltage :

3.3V

Rds On (Typ) :

70m Ω

Number of Channels :

1

Package / Case :

8-TSSOP, 8-MSOP (0.118, 3.00mm Width) Exposed Pad

Input Type :

Non-Inverting

Reach Compliance Code :

Compliant

Surface Mount :

yes

Terminal Pitch :

0.65mm

Packaging :

Tape and Reel (TR)

Number of Terminations :

8

JESD-30 Code :

S-PDSO-G8

Number of Outputs :

1

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
