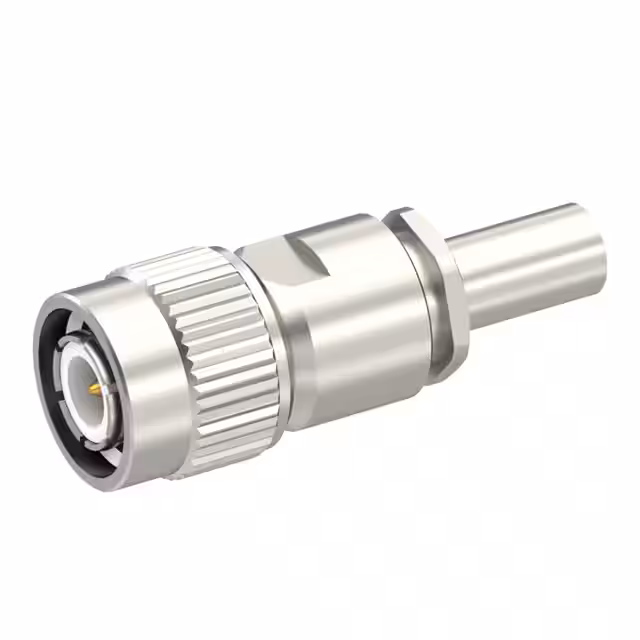

R143073000

Manufacturer :

Radiall USA, Inc.

Product Category :

Coaxial Connector (RF) Assemblies

Mounting Style :

Cable Mount / Free Hanging

Fastening Type :

Threaded

Center Contact Plating :

Gold

Number of Ports :

1

Insertion Loss :

0.18dB

Shield Termination :

Crimp

Contact Plating :

Gold

Connector Style :

TNC

Center Contact Material :

Brass

Includes :

-

RF Series :

TNC

Series :

-

Polarity :

Standard

Subcategory :

RF Interconnects

Base Product Number :

R14307

Cable Group :

RG-142, 223, 400

Features :

-

Product Category :

RF Connectors / Coaxial Connectors

Maximum Operating Temperature :

+ 165 C

Termination Style :

Crimp

Gender :

PLUG

Voltage Rating :

500 V

Insulation Resistance :

5000 MOhms

Body Orientation :

Straight

RoHS :

Details

Cable Type :

RG-142, 223, 400, KX23

IP Rating :

-

Contact Material :

Brass

Manufacturer :

Radiall

Ingress Protection :

-

Brand :

Radiall

Mounting :

Cable Mount

Operating Temperature :

-65 to 165 °C

Housing Color :

Silver

Product Status :

Active

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Termination Method :

Crimp

Mounting Type :

Free Hanging (In-Line)

Body Material :

Brass

Product Length :

38.7 mm

Impedance :

50 Ohms

Product Type :

RF Connectors / Coaxial Connectors

Frequency - Max :

4 GHz

Orientation :

Straight

Mating Cycles :

500

Contact Termination :

Crimp

Connector Type :

Plug, Male Pin

Minimum Operating Temperature :

- 65 C

Terminate To :

5/50D Cable

Body Style :

Screw On

Package :

Box

Product :

Connectors

Mounting Feature :

-

Body Finish :

Nickel
