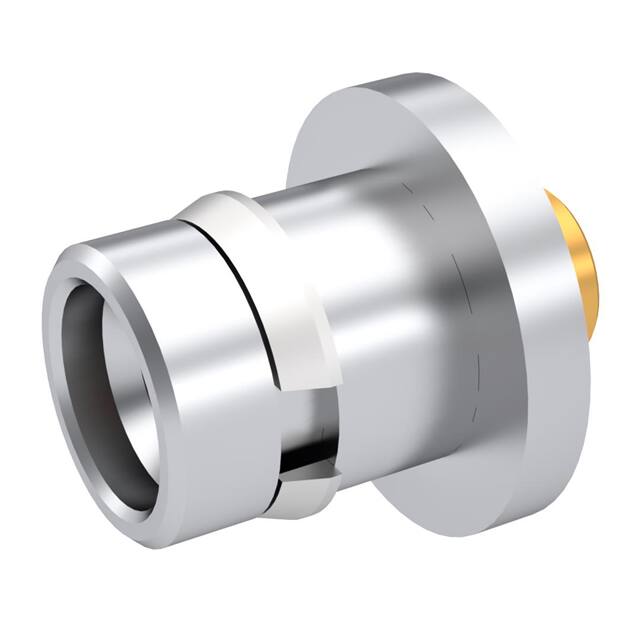

R222223302
Or copy the link below:
- Mfr.Part #
- R222223302
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SMP / SNAP-IN STRAIGHT MALE JACK
- Stock
- 10,769
- In Stock ：
- 10,769
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Fastening Type :
- Snap-On
- Gender :
- Male
- Product Status :
- Active
- Body Material :
- Stainless Steel
- Frequency :
- 40 GHz
- Center Contact Material :
- BERYLLIUM COPPER
- Voltage Rating :
- 335 V
- Mount :
- CABLE
- Contact Plating :
- Gold
- Cable Group :
- RG-405 (.085 Semi Rigid)
- Max Frequency :
- 40 GHz
- Mounting Type :
- Panel Mount
- Series :
- -
- Product :
- Connectors
- Mounting Feature :
- -
- Connector Style :
- SMP
- Contact Material :
- Copper
- Base Product Number :
- R22222
- Shield Termination :
- Solder
- Features :
- Limited Detent
- Orientation :
- Straight
- Operating Temperature :
- -65°C ~ 165°C
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Housing Color :
- Gold, Silver
- RF Series :
- SMP
- RoHS :
- Compliant
- Center Contact Plating :
- Gold
- Radiation Hardening :
- No
- Includes :
- -
- Number of Ports :
- 1
- Connector Type :
- Jack, Male Pin
- Cable Type :
- RG-405, KS 1
- Mating Cycles :
- 500
- Impedance :
- 50 Ω
- Frequency - Max :
- 40 GHz
- Contact Termination :
- Solder
- Ingress Protection :
- -
- Package :
- Bulk
- Termination :
- Solder
- Insertion Loss :
- -
- Body Finish :
- Gold
- Termination Style :
- Solder
- Datasheets
- R222223302
Jack, Male Pin Snap-On 50 Ω SMP Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C ~ 165°C
R222223302 Overview
Packaging for this item is Jack, Male Pin.Panel Mount is the type of mounting for the device.The product is a member of the - Series.The device has 1 ports for managing a variety of tasks.It is mounted by Cable.It operates at an operating temperature of -65°C ~ 165°C.Using a 40 GHz frequency, it can perform efficiently.Devices with a maximum frequency of 40 GHz can be used.
R222223302 Features
- series
R222223302 Applications
There are a lot of Radiall
R222223302 Coaxial Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
