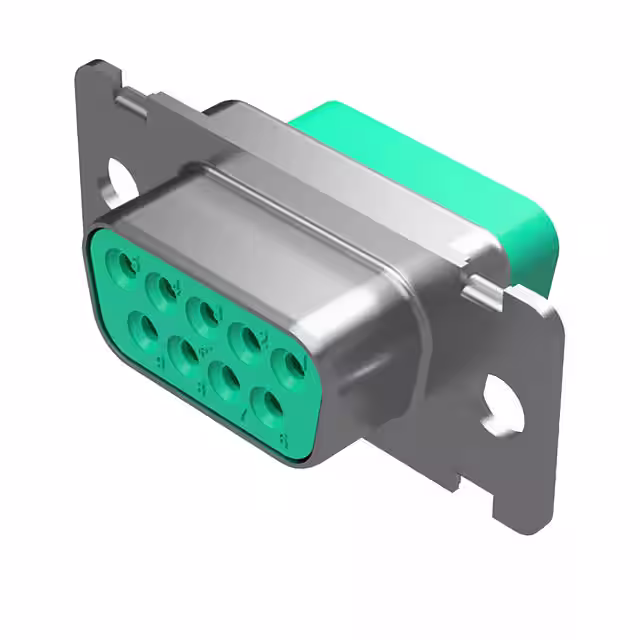

RD25M0000S/AA

Manufacturer :

Positronic

Product Category :

D-Sub, D-Shaped Connector Housings

Dielectric Material :

Diallyl Phthalate (DAP), Glass Filled

Fastening Type :

Threaded

Voltage Rating :

600VAC, 850VDC

Contact Material :

COPPER ALLOY

Contact Finish Thickness - Mating :

50.0µin (1.27µm)

Current Rating (Amps) :

-

Contact Type :

Signal

Series :

Military, MIL-DTL-38999 Series III, DTS

Flange Feature :

Housing/Shell (Unthreaded)

Material Flammability Rating :

-

Shell Size - Insert :

17-99

Shell Finish :

Black Zinc Nickel

Ingress Protection :

Environment Resistant

Connector Style :

D-Sub

Primary Material :

Metal

Base Product Number :

YDTS26Z17

Shell Finish Thickness :

-

Color :

Black

Note :

Contacts Not Included

Cable Opening :

-

Number of Rows :

2

Orientation :

N (Normal)

Backshell Material, Plating :

-

Applications :

Aviation, Communication Systems, Industrial

Shell Material :

Aluminum

Number of Positions :

23

Product Status :

Active

Contact Finish - Mating :

Gold

Shell Size, Connector Layout :

3 (DB, B)

Features :

Coupling Nut

Termination :

Crimp

Connector Type :

Plug, Male Pins

Shielding :

Shielded

Shell Size, MIL :

-

Operating Temperature :

-65°C ~ 175°C

Mounting Type :

Free Hanging (In-Line)

Insert Material :

Thermoplastic

Mounting Feature :

-

Mating Cycles :

1000

Package :

Bulk

Shell Material, Finish :

Stainless Steel, Passivated
