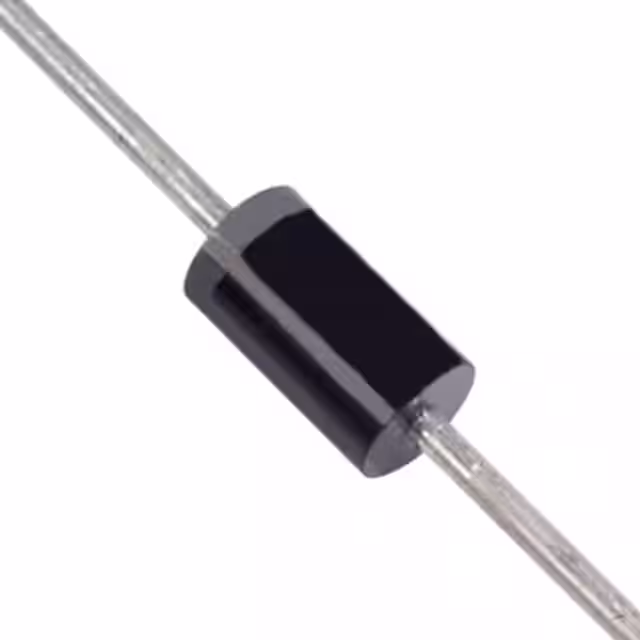

SB550-B

Manufacturer :

Diodes Incorporated

Product Category :

Diodes - Rectifiers - Single

Output Current-Max :

5A

Diode Type :

Schottky

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Min Operating Temperature :

-65°C

Terminal Finish :

Bright Tin (Sn)

Number of Elements :

1

Current - Reverse Leakage @ Vr :

500μA @ 50V

RoHS Status :

ROHS3 Compliant

Number of Terminations :

2

Terminal Form :

Wire

ECCN Code :

EAR99

Mounting Type :

Through Hole

Package / Case :

DO-201AD, Axial

JESD-609 Code :

e3

Peak Reverse Current :

500μA

Packaging :

Tape and Reel (TR)

Pbfree Code :

No

Pin Count :

2

Diode Element Material :

SILICON

Case Connection :

Isolated

Max Operating Temperature :

150°C

Mount :

Through Hole

Peak Non-Repetitive Surge Current :

150A

Forward Current :

5A

Peak Reflow Temperature (Cel) :

260

Operating Temperature - Junction :

-65°C~150°C

Number of Phases :

1

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Element Configuration :

Single

Number of Pins :

2

Application :

EFFICIENCY

Time@Peak Reflow Temperature-Max (s) :

40

Additional Feature :

FREE WHEELING DIODE, LOW POWER LOSS

Radiation Hardening :

No

Voltage - Forward (Vf) (Max) @ If :

670mV @ 5A

HTS Code :

8541.10.00.80

Max Repetitive Reverse Voltage (Vrrm) :

50V
