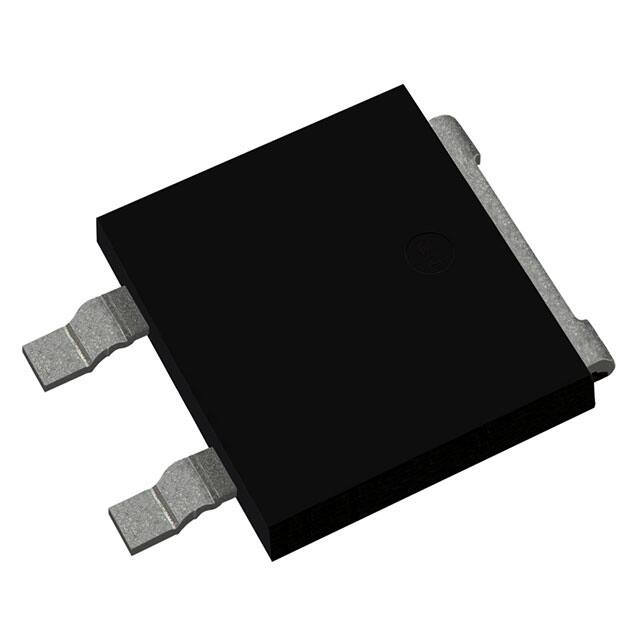

SE20DTLJHM3/I

Manufacturer :

Vishay

Product Category :

Diodes - Rectifiers - Single

RoHS :

Details

Voltage - DC Reverse (Vr) (Max) :

600 V

Type :

Standard Recovery Rectifiers

Reverse Recovery Time (trr) :

330 ns

Product Status :

Active

Operating Temperature - Junction :

-55°C ~ 175°C

Tradename :

eSMP

Subcategory :

Diodes and Rectifiers

Current - Average Rectified (Io) :

3.8A

Brand :

Vishay Semiconductors

Configuration :

Single

Supplier Device Package :

SMPD

Packaging :

Bulk

Max Surge Current :

200 A

Voltage - Forward (Vf) (Max) @ If :

1 V @ 20 A

Mounting Style :

SMD/SMT

Maximum Operating Temperature :

+ 175 C

Manufacturer :

Vishay

Recovery Time :

330 ns

Product Category :

Rectifiers

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Capacitance @ Vr, F :

160pF @ 4V, 1MHz

Package / Case :

TO-263-3, D²Pak (2 Leads + Tab) Variant

Vf - Forward Voltage :

1 V

Technology :

Standard

Product Type :

Rectifiers

Series :

Automotive, AEC-Q101

Mounting Type :

Surface Mount

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Current - Reverse Leakage @ Vr :

5 µA @ 600 V

Product :

Rectifiers

Minimum Operating Temperature :

- 55 C
