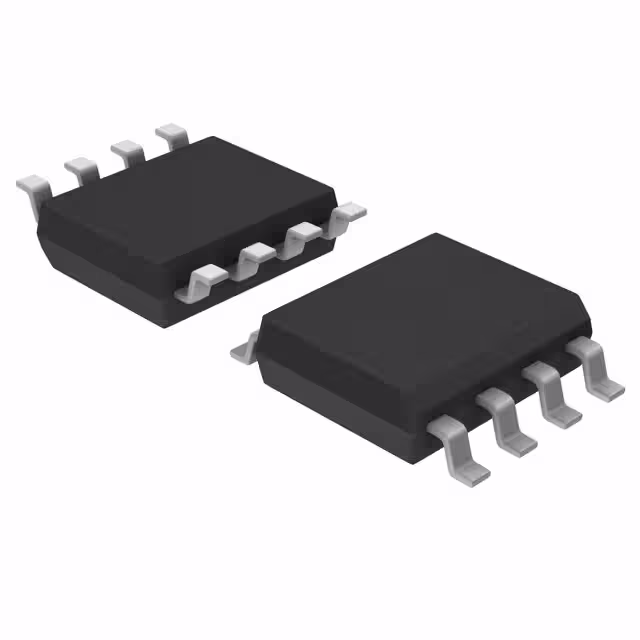

SQ4435EY-T1_BE3

Manufacturer :

Vishay

Product Category :

Transistors - FETs, MOSFETs - Single

Drive Voltage (Max Rds On, Min Rds On) :

4.5V, 10V

Maximum Operating Temperature :

+ 175 C

Vgs(th) (Max) @ Id :

2.5V @ 250μA

Subcategory :

MOSFETs

Brand :

Vishay Semiconductors

Power Dissipation (Max) :

6.8W (Tc)

Channel Mode :

Enhancement

Transistor Type :

1 P-Channel

Gate Charge (Qg) (Max) @ Vgs :

58 nC @ 10 V

Drain to Source Voltage (Vdss) :

30 V

Packaging :

Cut Tape

FET Feature :

-

Series :

Automotive, AEC-Q101, TrenchFET?

Number of Channels :

1 Channel

Product Status :

Active

Minimum Operating Temperature :

- 55 C

Rise Time :

9 ns

Rds On (Max) @ Id, Vgs :

18mOhm @ 8A, 10V

FET Type :

P-Channel

Package :

Digi-Reel?

Operating Temperature :

-55°C ~ 175°C (TJ)

Supplier Device Package :

8-SOIC

Vgs (Max) :

±20V

Input Capacitance (Ciss) (Max) @ Vds :

2170 pF @ 15 V

Base Product Number :

SQ4435

RoHS :

Details

Tradename :

TrenchFET

Product Type :

MOSFET

Product Category :

MOSFET

Manufacturer :

Vishay

Mounting Type :

Surface Mount

Package / Case :

8-SOIC (0.154", 3.90mm Width)

Current - Continuous Drain (Id) @ 25°C :

15A (Tc)

Mounting Style :

SMD/SMT

Transistor Polarity :

P-Channel
