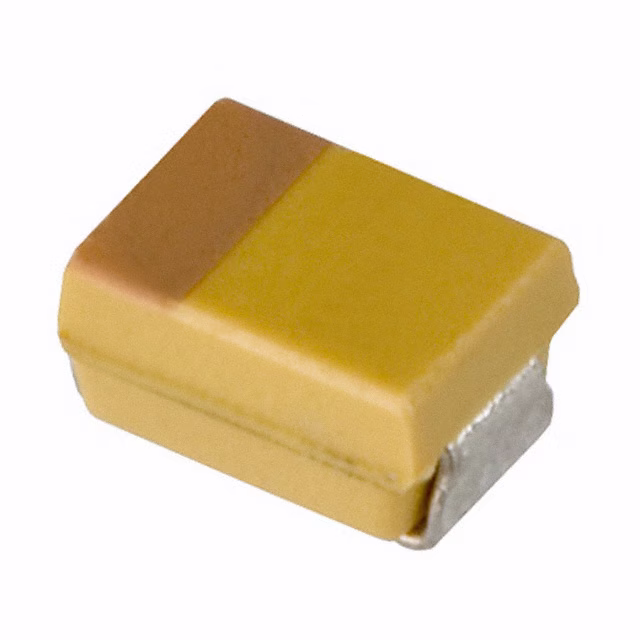

TAJR105K016ANJ

Manufacturer :

KYOCERA AVX

Product Category :

Tantalum Capacitors

Min Operating Temperature :

-55°C

ESR (Equivalent Series Resistance) :

20Ohm

Packaging :

Tape and Reel (TR)

Leakage Current :

500nA

Dielectric Material :

TANTALUM (DRY/SOLID)

Tolerance :

10%

Pbfree Code :

yes

Capacitor Type :

TANTALUM CAPACITOR

Width :

1.3mm

Polarity :

POLARIZED

Voltage - Rated DC :

16V

Dissipation Factor :

4 %

Height :

1.2mm

Max Operating Temperature :

125°C

Case Code (Metric) :

2012

Terminal Shape :

J BEND

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e4

Tan Delta :

0.04

Length :

2.05mm

Factory Lead Time :

21 Weeks

HTS Code :

8532.21.00.50

Terminal Finish :

Gold (Au)

ECCN Code :

EAR99

Mounting Feature :

Surface Mount

Case Code (Imperial) :

0805

Lead Free :

Lead Free

Termination :

SMD/SMT

Voltage - Rated :

16V

Capacitance :

1μF

Number of Terminations :

2

Weight :

5.499807mg

RoHS Status :

RoHS Compliant

Surface Mount :

yes

Packing Method :

TR, 7 INCH
