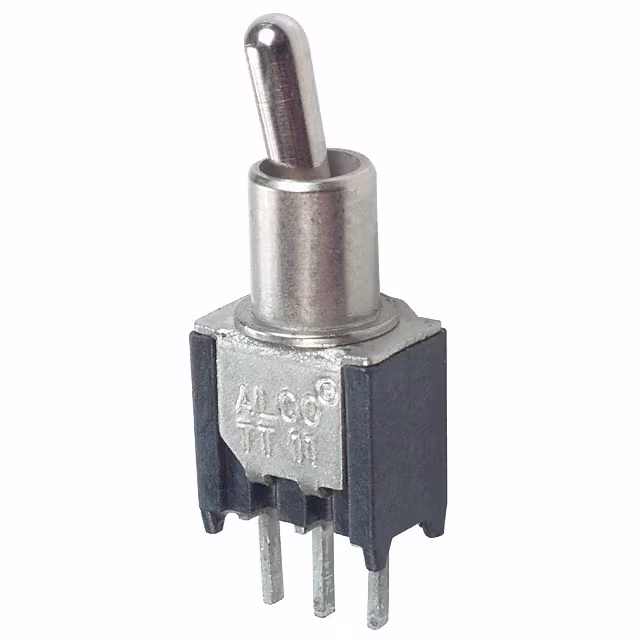

TT11DGPC1
Or copy the link below:
- Mfr.Part #
- TT11DGPC1
- Manufacturer
- TE Connectivity ALCOSWITCH Switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE SPDT 0.4VA 20V
- Stock
- 38,860
- In Stock ：
- 38,860
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity ALCOSWITCH Switches
- Product Category :
- Actuator Material :
- Brass
- Bushing Thread :
- Unthreaded
- Mounting Type :
- Through Hole
- Operating Temp Range :
- -30C to 85C
- Compliance :
- -
- Ingress Protection :
- --
- Mounting Style :
- PC Mount
- Electrical Life :
- 80000
- Contact Resistance Max :
- 20(mohm)
- Brand :
- TE Connectivity / Alcoswitch
- Seal Location :
- Terminals
- Dielectric Strength :
- 1000Vrms
- Actuator Type :
- Standard Round
- Current Rating (Amps) :
- 0.4VA (AC/DC)
- Switch Function :
- On-On
- Illumination Type, Color :
- --
- Number of Terminals :
- 3
- Type :
- Switch
- Base Product Number :
- TT11
- Body Orientation :
- Straight
- Mounting :
- PC Mount
- AC Voltage Rating (Max) :
- 20
- Product Height (mm) :
- 19.94(mm)
- Termination Style :
- PC Pins
- Panel Cutout Dimensions :
- --
- Actuator :
- Bat
- Insulation Resistance :
- 1000(Mohm)
- Contact Plating :
- Gold
- Product Status :
- Active
- Bushing Type :
- Unthreaded
- Operating Temperature Max Deg. C :
- 85C
- Contact Material :
- COPPER ALLOY
- Manufacturer :
- TE Connectivity
- Seal Description :
- Epoxy
- RoHS :
- N
- Subcategory :
- Switches
- Actuator Length (mm) :
- 5.61(mm)
- DC Voltage Rating (Max) :
- 20
- Housing Material :
- Thermoplastic (TP)
- Product Category :
- Toggle Switches
- Pole Throw Configuration :
- SPDT
- Product Depth (mm) :
- 5.99(mm)
- Power Rating :
- 400 mVA
- Maximum Operating Temperature :
- + 85 C
- Product Length (mm) :
- 8.1(mm)
- Product Type :
- Toggle Switches
- Color :
- Black
- Operating Temperature Min Deg. C :
- -30C
- Series :
- TT
- Current Rating :
- 0.4VA (AC/DC)
- Contact Form :
- SPDT
- Features :
- Epoxy Sealed Terminals
- Packaging :
- Bulk
- Actuator Length :
- 5.61mm
- Illumination Voltage (Nominal) :
- --
- Illumination :
- Non-Illuminated
- Voltage Rating - DC :
- 20V
- Voltage Rating - AC :
- 20V
- Mounting Angle :
- Vertical
- Thread Size :
- Not Required
- Switch Configuration :
- ON None ON
- Circuit :
- SPDT
- Minimum Operating Temperature :
- - 30 C
- Illumination Color :
- -
- Operating Temperature :
- -30 to 85 °C
- Flammability Rating :
- UL 94 V-0
- Package :
- Bulk
- Lamp Type :
- -
- Actuator Style :
- SHORT BATON LEVER
- Datasheets
- TT11DGPC1
