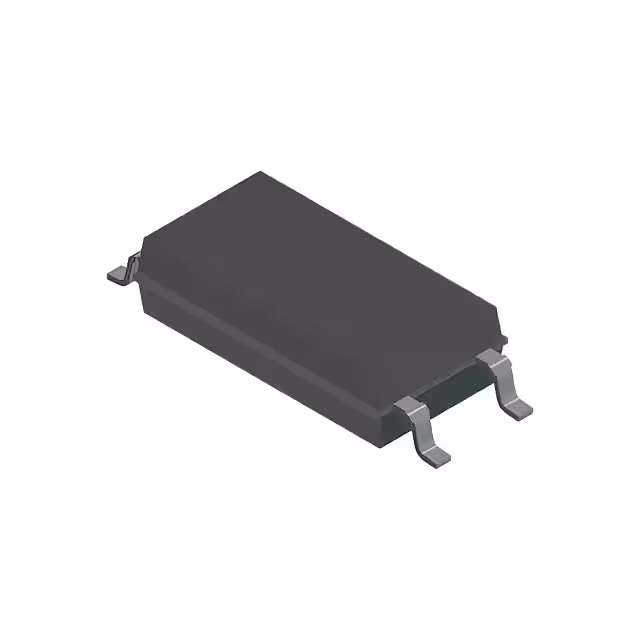

VOL618AT

Manufacturer :

Vishay

Product Category :

Optoisolators - Transistor, Photovoltaic Output

RoHS :

Details

Brand :

Vishay Semiconductors

Voltage - Forward (Vf) (Typ) :

1.16V

Product Category :

Transistor Output Optocouplers

Packaging :

Cut Tape

Optoelectronic Device Type :

TRANSISTOR OUTPUT OPTOCOUPLER

Subcategory :

Optocouplers

Isolation Voltage :

5000 Vrms

Input Type :

DC

Voltage - Output (Max) :

80V

Rise / Fall Time (Typ) :

3.5µs, 5µs

Reach Compliance Code :

Unknown

Minimum Operating Temperature :

- 55 C

Operating Temperature :

-55°C ~ 110°C

Current Transfer Ratio :

50 %

Manufacturer :

Vishay

Maximum Operating Temperature :

+ 110 C

Output Type :

Transistor

Package :

Digi-Reel?

Vce Saturation (Max) :

400mV

Number of Channels :

1

Current Transfer Ratio (Min) :

50% @ 1mA

Voltage - Isolation :

5000Vrms

Mounting Type :

Surface Mount

Turn On / Turn Off Time (Typ) :

6µs, 5.5µs

Current - Output / Channel :

50mA

Mounting Style :

SMD/SMT

Current - DC Forward (If) (Max) :

60 mA

Current Transfer Ratio (Max) :

600% @ 1mA

Series :

VOL618A

Product Status :

Active

HTS Code :

8541.40.80.00

Package / Case :

DO-214AB, SMC

Supplier Device Package :

DO-214AB (SMC)

ECCN Code :

EAR99

Rise Time :

3.5 us

Product Type :

Transistor Output Optocouplers

Vf - Forward Voltage :

1.5 V
