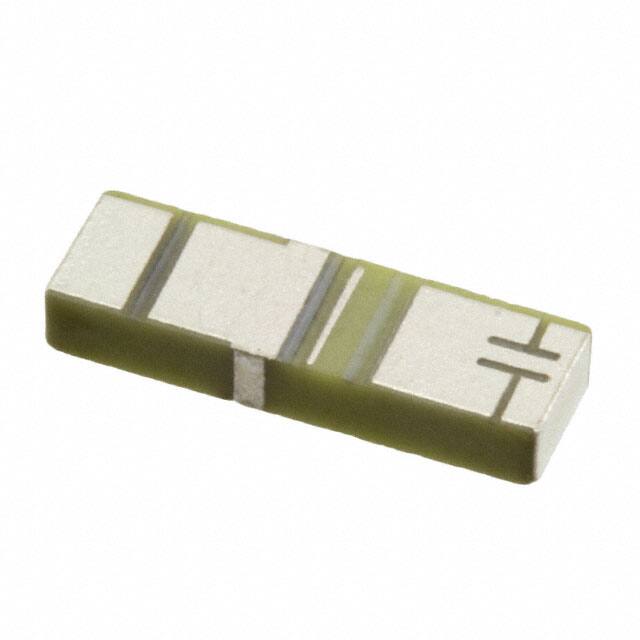

W3095

Manufacturer :

Pulse Electronics

Product Category :

RF Antennas

Gain :

2.5dBi

Brand :

Pulse Electronics

Features :

-

Antenna Type :

Chip

Center Frequency :

2450 MHz, 5500 MHz

Supplier Package :

CSMD

Product Status :

Active

Termination Style :

SMD/SMT

Frequency (Center/Band) :

1.575GHz, 1.602GHz, 2.4GHz, 5.4GHz

Applications :

GLONASS, GPS

Ingress Protection :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Screening Level :

Industrial

Mounting Style :

PCB Mount

Product Type :

Multiband Antennas

Subcategory :

Antennas

Maximum Operating Temperature :

+ 85 C

Minimum Operating Temperature :

- 40 C

Product Category :

Antennas

Width :

3.2 mm

Type :

GPS

Mounting Type :

Surface Mount

Cable Type :

-

Length :

10 mm

RF Family/Standard :

Navigation

Style :

Ceramic

VSWR :

1.2

Packaging :

MouseReel

Height :

1.5 mm

Return Loss :

-

Frequency Group :

Wide Band

Antenna Connector Type :

-

Height (Max) :

0.059 (1.50mm)

Application :

Mobile Navigation Device

Impedance :

50 OHM

Termination :

Solder

Manufacturer :

Pulse

Product :

PCB Antennas

Frequency Range :

1.575GHz ~ 1.61GHz, 2.4GHz ~ 2.49GHz, 4.9GHz ~ 5.85GHz

Mounting :

Surface Mount

Number of Bands :

3

RoHS :

Details

Series :

-

Pin Count :

2
