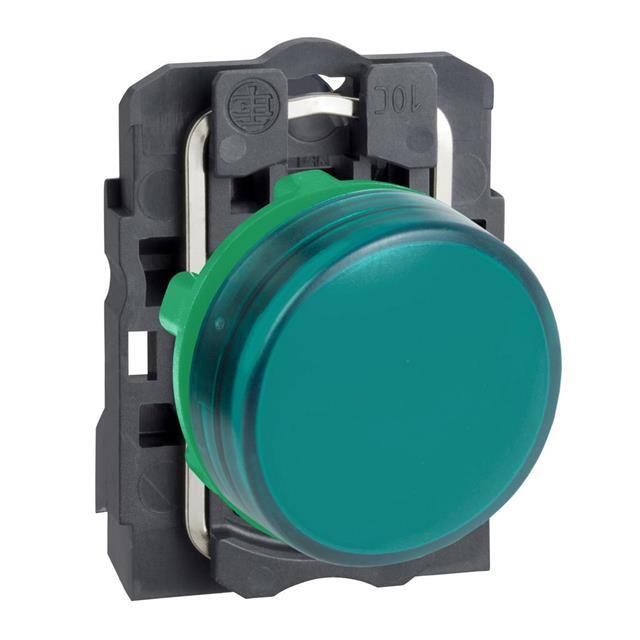

XB5AVB3

Manufacturer :

Schneider Electric

Product Category :

Product Type :

Panel Mount Indicators / Switch Indicators

Brand :

Schneider Electric

Package :

Box

Degree of protection (IP) :

IP66

With front ring :

No

Type :

Complete device

Length :

54 mm

Product :

Indicators

Mounting Type :

Panel Mount

Type of lamp socket :

LED

Content :

1pc(s)

Lens Size :

30.00mm Dia

RoHS :

Details

Product Category :

Industrial Panel Mount Indicators / Switch Indicators

Features :

LED pilot light

Millicandela Rating :

-

Number of indicator lights :

1

Current :

18mA

Dim :

(W x H x D) 30 x 42 x 54 mm

For Use With :

Pushbutton Switches

Voltage Rating :

24V AC/DC

Subcategory :

Switch Accessories

Height :

42mm

Type of electric connection :

Screw connection

Terminal Type :

Screw

Viewing Angle :

-

Recess diameter :

22.5mm

Manufacturer :

Schneider Electric

Lamp Type :

LED

Operating Voltage :

24V

Panel Cutout Dimensions :

0.87 (22.00mm)

Construction type lens :

Round

With light source :

yes

Weight :

0.038kg

Illumination Color :

Green

Color :

Green

Voltage :

24V

Lamp Color :

-

Width :

30mm

IP Rating :

IP66, IP67

Mounting Hole Dia :

22mm

Depth :

54mm

Panel Cutout Shape :

Round

Connection :

Screws

Ingress Protection :

IP66, IP67, IP69, IP69K, NEMA 4X, 13

Voltage type :

AC/DC

Series :

Harmony XB5

Energy efficiency rating :

n.rel.

Type of lens :

Flat

Luminous Intensity :

-

Colour lens :

Green

Lens Style :

Round with Convex Top

Degree of protection (NEMA) :

13

Material :

Plastic

Material front ring :

Plastic

Termination Style :

Screw

Lens Transparency :

-

Ratings :

AC/DC

Lens Color :

Green

Mounting Style :

Panel Mount

Wavelength - Peak :

-

Product Status :

Active

Rated operating voltage Ue :

24 - 24

Colour front ring :

Black
