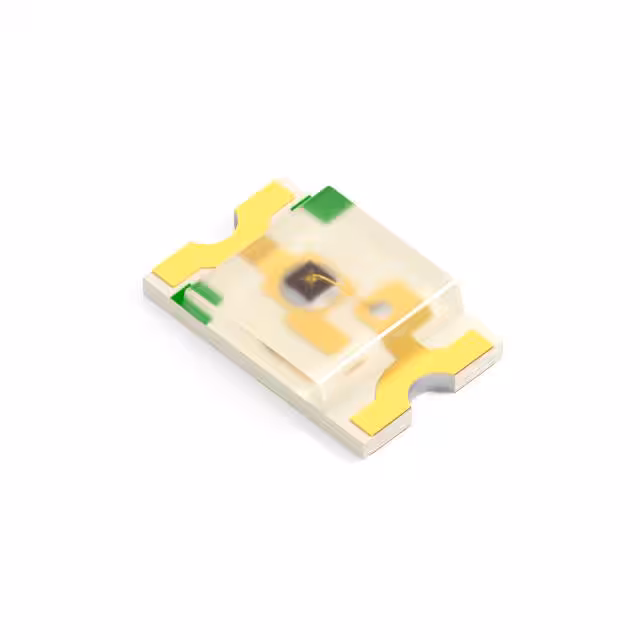

XZVG54W-4

Manufacturer :

SunLED

Product Category :

ECCN Code :

EAR99

Voltage - Forward (Vf) (Typ) :

2.1V

Lens Type :

WATER CLEAR

Shape :

RECTANGULAR

Product Status :

Active

Packing Method :

Tape and Reel

Lifecycle Status :

Production (Last Updated: 2 years ago)

Surface Mount :

yes

Lens Transparency :

Clear

Pbfree Code :

yes

Series :

-

Viewing Angle :

140°

Wavelength - Peak :

574nm

Lens Size :

1.30mm x 1.25mm

Base Product Number :

XZVG54

Optoelectronic Device Type :

SINGLE COLOR LED

Number of Functions :

1

Size :

1.3

Number of Terminals :

2

HTS Code :

8541.40.20.00

Terminal Pitch :

2.1

Millicandela Rating :

49mcd

Manufacturer :

SunLED Group

Features :

-

Mounting Feature :

Surface Mount

Wavelength - Dominant :

570nm

Lens Style :

Rectangle with Flat Top

Luminous Intensity :

49 mcd

Current - Test :

20mA

Forward Current-Max :

.03

Color :

Green

Configuration :

-

Overall Height :

.4

Wavelength :

574 nm

Reach Compliance Code :

Compliant

Lens Color :

Colorless

Height (Max) :

0.50mm

Size / Dimension :

2.00mm L x 1.25mm W

Package / Case :

0805 (2012 Metric)

Package :

Digi-Reel?

Supplier Device Package :

0805

Mounting Type :

Surface Mount

Peak Wavelength :

574
