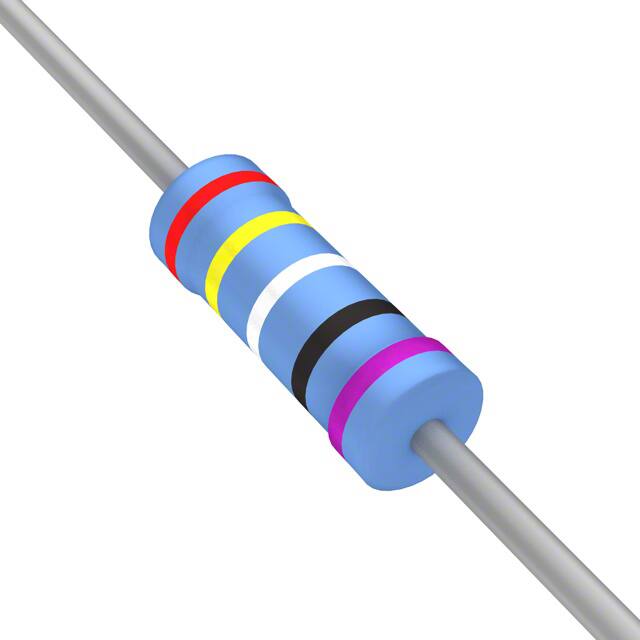

YR1B249RCC

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Voltage Rating :

250V

Rated Power Dissipation (P) :

0.25 W

Military Standard :

Not Required

Construction :

Tubular

Product Diameter (mm) :

2.3(mm)

Series :

YR, Neohm

Product Height (mm) :

Not Required(mm)

Resistor Type :

FIXED RESISTOR

Surface Mount :

No

Minimum Operating Temperature :

-65°C

Diameter :

2.3 mm

Product Status :

Active

Power Rating(s) :

0.25 (1/4)(W)

Maximum Operating Temperature :

+155°C

RoHS :

Details

Number of Terminations :

2

Package :

Cut Tape (CT);Tape and Box (TB);

Packaging :

Tape and Box (TB)

Features :

--

Package Shape :

TUBULAR PACKAGE

Flame-Proof Support :

No

Supplier Device Package :

Axial

Product Type :

Metal Film Resistors

Reach Compliance Code :

Compliant

Tolerance (+ or -) :

0.1%

Base Product Number :

YR1B

Length :

6.3 mm

Lead Diameter :

0.6 mm

Brand :

TE Connectivity / Holsworthy

Lead Spacing (nom) :

Not Required(mm)

Product Length (mm) :

6.3(mm)

Type :

Thin Film

Working Voltage :

250 V

Composition :

Metal Film

Operating Temperature :

-65°C ~ 155°C

Operating Temp Range :

-65C to 155C

Mounting Feature :

THROUGH HOLE MOUNT

Termination Style :

Axial

Number of Terminals :

2

Temperature Range @ Derated Power :

70 TO 155

Product :

Precision Metal Film Resistors

Additional Feature :

PRECISION

Packing Method :

Ammo Pack

Temperature Coefficient :

15 ppm/°C

Package Length :

6.3 mm

Terminal Shape :

Wire

Package / Case :

Axial

Tolerance :

0.1%

Product Width :

-

Mounting Style :

PCB Mount

Pbfree Code :

yes

Power Rating :

0.25W

Resistance Tolerance :

± 0.1%

Case Style :

Epoxy

Lead Length :

25 mm

Product Depth (mm) :

Not Required(mm)

Size / Dimension :

0.091 Dia x 0.248 L (2.30mm x 6.30mm)

ECCN Code :

EAR99

Height - Seated (Max) :

--

Resistance :

249 Ω

Product Length :

6.3mm

Failure Rate :

--

Power (Watts) :

0.25W, 1/4W

Factory Lead Time :

13 Weeks

Product Category :

Metal Film Resistors - Through Hole

Qualification :

-
