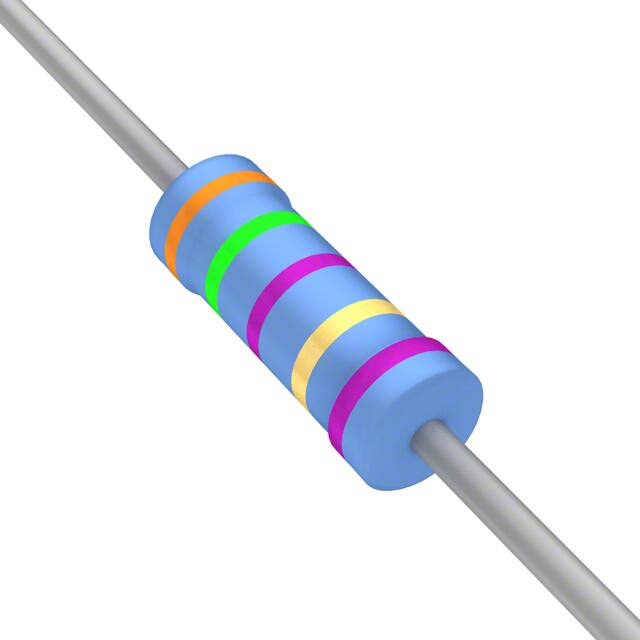

YR1B35R7CC

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Failure Rate :

--

Type :

Precision Resistor

Product Type :

Metal Film Resistors

Tolerance :

0.1%

Packaging :

Tape and Box (TB)

Factory Lead Time :

13 Weeks, 6 Days

Length :

6.3 mm

Package / Case :

Axial

Composition :

Metal Film

Mounting Feature :

THROUGH HOLE MOUNT

Minimum Operating Temperature :

-65°C

Product Category :

Metal Film Resistors - Through Hole

Pbfree Code :

yes

Surface Mount :

No

Resistance :

35.7 Ω

Working Voltage :

250 V

Size / Dimension :

0.091 Dia x 0.248 L (2.30mm x 6.30mm)

Package Length :

6.3 mm

Additional Feature :

PRECISION

ECCN Code :

EAR99

Reach Compliance Code :

Compliant

Lead Diameter :

0.6 mm

Mounting Style :

PCB Mount

Height - Seated (Max) :

--

Number of Terminations :

2

Maximum Operating Temperature :

+155°C

Product Status :

Active

Terminal Shape :

Wire

Rated Power Dissipation (P) :

0.25 W

Product :

Precision Metal Film Resistors

Package :

Tape and Box (TB)

Power Rating :

0.25W

Base Product Number :

YR1B

Supplier Device Package :

Axial

Series :

YR, Neohm

Resistor Type :

FIXED RESISTOR

RoHS :

Details

Construction :

Tubular

Features :

--

Operating Temperature :

-65°C ~ 155°C

Diameter :

2.3 mm

Packing Method :

Ammo Pack

Lead Length :

25 mm

Temperature Coefficient :

15 ppm/°C

Power (Watts) :

0.25W, 1/4W

Brand :

TE Connectivity / Holsworthy

Voltage Rating :

250 V

Termination Style :

Axial

Number of Terminals :

2

Package Shape :

TUBULAR PACKAGE
