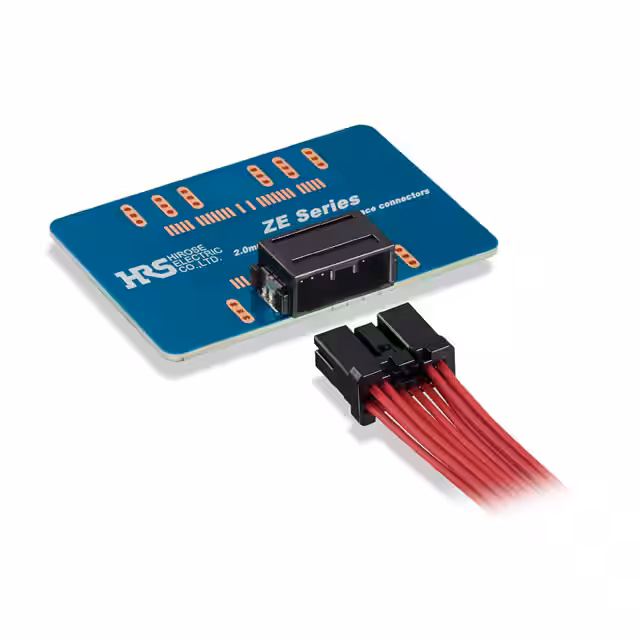

ZE05H-2P-2V

Manufacturer :

Hirose

Product Category :

Headers, Male Pins

Features :

Solder Retention

Number of Positions :

2 Position

Insulation Material :

Polyamide (PA), Nylon

Mated Stacking Heights :

-

Accessory Type :

-

Operating Temperature :

-40°C ~ 125°C

Insulation Height :

0.276 (7.00mm)

Mounting Style :

SMD/SMT

Product :

Housings

Pitch :

2 mm

Insulation Color :

Black

Gender :

Receptacle (Female)

Contact Finish Thickness - Post :

-

Contact Finish Thickness - Mating :

-

Current Rating (Amps) :

2A, 5A

Voltage Rating :

60V

Termination :

Solder

Shrouding :

Shrouded - 4 Wall

Overall Contact Length :

-

Contact Type :

Male Pin

Contact Gender :

Without Socket Contacts

Connector Type :

Header

Ingress Protection :

-

Applications :

-

Material Flammability Rating :

UL94 V-0

Fastening Type :

-

Contact Length - Post :

-

Series :

ZE05

Current Rating :

2A

Row Spacing - Mating :

-

Number of Positions Loaded :

All

Contact Finish - Mating :

Tin

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Contact Material :

Brass

Product Status :

Active

Contact Shape :

Square

Number of Rows :

1

Mounting Type :

Surface Mount

Contact Finish - Post :

Tin

Pitch - Mating :

0.079 (2.00mm)

Style :

Board to Cable/Wire

Termination Style :

Solder

IP Rating :

-

Contact Length - Mating :

-

RoHS :

Details

Contact Plating :

Tin

Packaging :

Cut Tape
