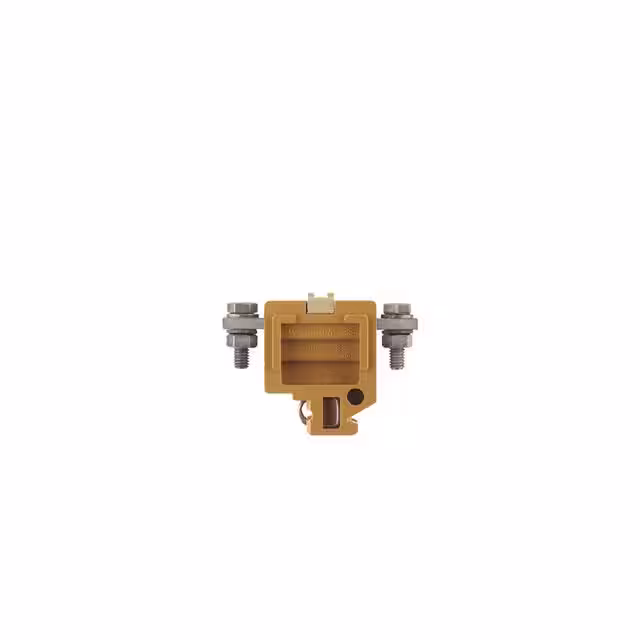

0170320000

Manufacturer :

Weidmuller

Product Category :

Specialized

Fastening Method :

Screw

Terminal Width :

28.0mm

Housing Material :

Plastic

Number of Levels :

1

Number of Contacts :

2

Length :

2.756 70.00mm

Housing Color :

Beige

Safety Approval :

UL; VDE; CSA

Type :

Bus Bar - Terminals

Wire Gauge or Range - AWG :

2-8 AWG

Wire Gauge (Min) :

2 AWG

Radiation Hardening :

No

Number of Decks :

1

Material - Insulation :

Gemin (Thermosetting Plastic)

Termination Style :

Bolt and Nut

Mounting Type :

DIN Rail

ECCN Code :

EAR99

Number of Ways :

1

Material Flammability Rating :

UL94 V-0

Height :

53mm

RoHS Status :

RoHS Compliant

Current - IEC :

125A

Orientation :

Straight

Current :

115A

Lead Free :

Lead Free

Wire Gauge or Range - mm² :

6-50mm2

HTS Code :

8536.69.40.40

Approval Agency :

CE, CSA, IEC, UR

Operating Temperature :

-60°C~130°C

Voltage - IEC :

1kV

Number of Rows :

1

Voltage - Rated :

8kV

Factory Lead Time :

6 Weeks

Current Rating :

125A

Mount :

DIN Rail

Series :

SAK

Width :

28mm

Flammability Rating :

UL94 V-0

Weight :

100.5g

Voltage :

600V

Wire Gauge (Max) :

8 AWG
