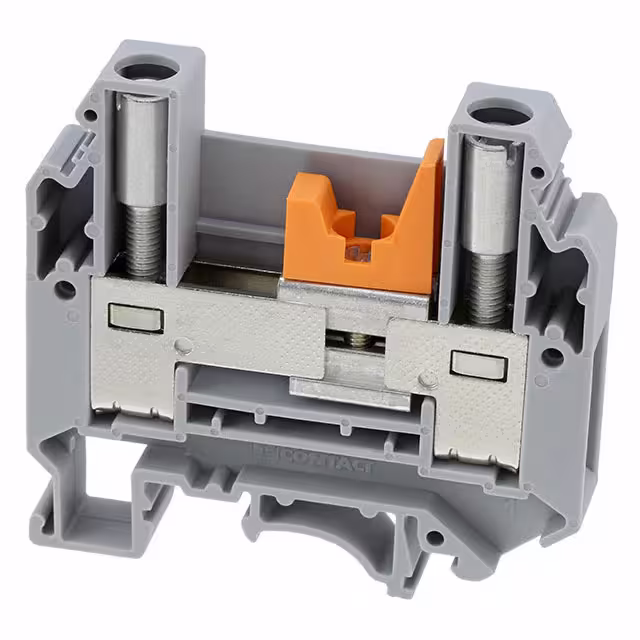

0309112

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Housing Material :

Nylon 6/6

Approvals :

CSA, UL

Series :

Standard .093

Country of Origin :

US

Max Operating Temperature :

105 °C

Operating Temp Range :

-40C to 105C

Reach Compliance Code :

Compliant

Body Orientation :

Straight

HTS Code :

8536.69.40.30

Contact Gender :

Male

Width :

17.6 mm

Current Rating :

9.5 A

Depth :

25.9 mm

Total Number of Contacts :

12

Length :

22.1 mm

Number of Poles :

12

Packaging :

Bag

Pitch (mm) :

5.03(mm)

Filter Feature :

No

Pbfree Code :

yes

Application :

Power

UL Flammability Code :

94V-2

Base/Housing Material :

Nylon 66

Termination :

Crimp

Gender :

Receptacle

Number of Rows :

3

Panel Mount :

No

Product Length (mm) :

22.1(mm)

Housing Color :

Natural

Type :

Housing

Radiation Hardening :

No

Operating Supply Voltage :

250 V

Min Operating Temperature :

-40 °C

Product Depth (mm) :

17.6(mm)

Reference Standard :

UL

Mounting Type :

Cable Mount

For Use With :

Molex 1189, 1190 Series Socket Crimp Terminals

Glow Wire Compliant :

Non-Compliant

Mount :

CABLE

Number of Contacts :

12(POS)

Manufacturer :

Molex

Operating Temperature :

-40 to 105 °C

Flammability Rating :

UL94 V-2

Number of Positions :

12

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Current Rating (Max) :

9.5/Contact(A)

Body/Shell Style :

Receptacle

Body Breadth :

0.63 inch

Option :

GENERAL PURPOSE

Shell Material :

Nylon

Mixed Contacts :

No

Factory Lead Time :

7 Weeks

Empty Shell :

yes

Color :

Stone Gray

Additional Feature :

COMPATIBLE CONTACTS: 02-09-2134; 02-09-6132, POLARIZED

Insertion Force-Max :

15.568 N

Body Depth :

1.02 inch

Contact Style :

RND PIN-SKT

Number of Contact Rows :

3

Termination Type :

Solder

Orientation :

Straight

Pitch :

5.0300 mm

Lead Free :

Contains Lead

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

ECCN Code :

EAR99

Height :

17.6 mm

Connector Type :

Socket

Lifecycle Status :

Production (Last Updated: 2 years ago)

Product Height (mm) :

25.9(mm)

RoHS :

Compliant
