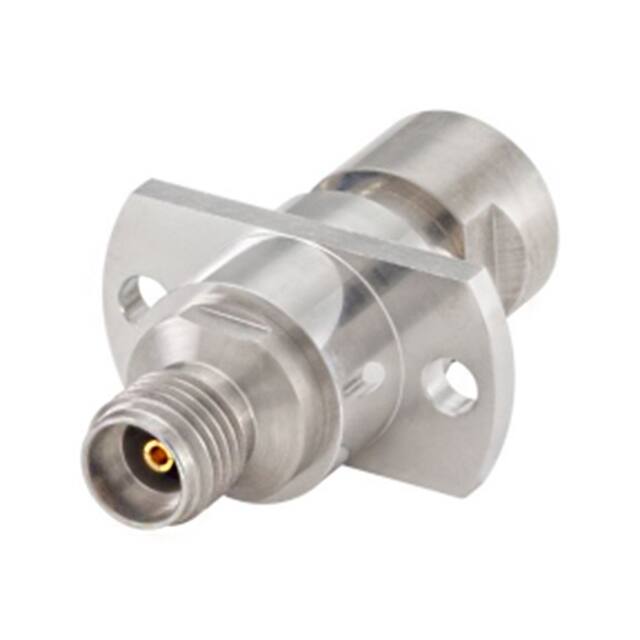

03K728-S22S3

Manufacturer :

Rosenberger

Product Category :

Coaxial Connector (RF) Adapters

Option :

GENERAL PURPOSE

IEC Conformance :

yes

Insulation Material :

POLYTETRAFLUORO ETHYLENE

Mounting Type :

Panel Mount

Operating Frequency-Max :

18GHz

Contact Gender :

FEMALE-MALE

Mating Cycles :

1000

Series :

RPC

Operating Temperature :

-40°C~85°C

VSWR :

1.13

Center Gender :

Female to Male

Body Material :

Stainless Steel

Packaging :

Bulk

DIN Conformance :

No

Convert From (Adapter End) :

3.5mm Jack, Female Socket

Filter Feature :

No

Impedance :

50Ohm

Panel Mount :

yes

Additional Feature :

STANDARD: IEC 60169, VSWR MAX AT 18 GHZ

Mounting Feature :

Flange

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Frequency (Max) :

18GHz

Convert To (Adapter End) :

QMA Plug, Male Pin

Adapter Series :

RPC-3.50 to QMA

Center Contact Plating :

Gold

Insertion Loss :

0.21dB

Published :

2012

Adapter Type :

Plug to Jack

Center Contact Material :

BERYLLIUM COPPER

Fastening Type :

Snap-On, Threaded

Style :

Straight

RoHS Status :

RoHS Compliant

Factory Lead Time :

13 Weeks

JESD-609 Code :

e4

Conversion Type :

Between Series

MIL Conformance :

No

Dielectric Material :

Polystyrene (PS)
