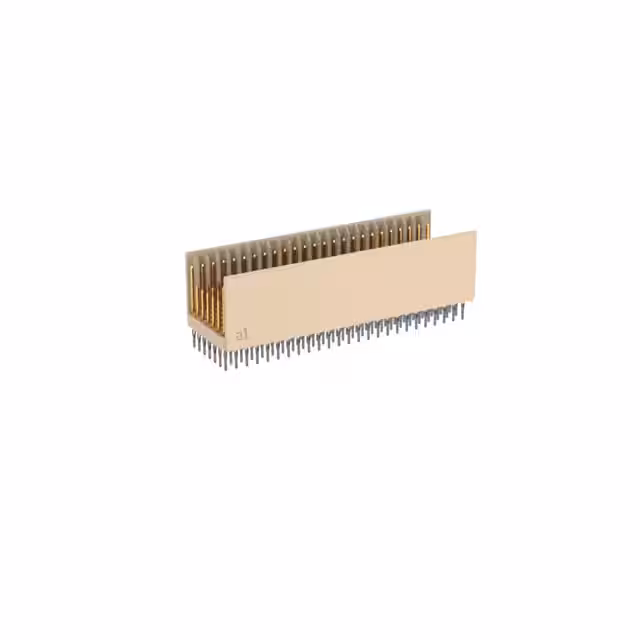

053008

Manufacturer :

TE Connectivity

Product Category :

Hard Metric, Standard

Reference Standard :

UL

Contact Resistance :

20 mΩ

Body/Shell Style :

Receptacle

UL Flammability Code :

94V-0

Mounting Style :

Straight

Polarization Key :

POLARIZED HOUSING

PCB Contact Row Spacing :

2.0066 mm

Insulation Resistance :

10000000000 Ω

IEC Conformance :

yes

Number Of PCB Rows :

5

Contact Gender :

Male

Contact Pattern :

RECTANGULAR

Mating Contact Row Spacing :

0.079 inch

MIL Conformance :

No

Insertion Force-Max :

.7506 N

Mounting Option 1 :

LOCKING

Total Number of Contacts :

175

Option :

GENERAL PURPOSE

Additional Feature :

STANDARD: IEC 61076-4-101, 50 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROWS

Reach Compliance Code :

Compliant

Reliability :

COMMERCIAL

Durability :

250 Cycles

Contact Material :

NOT SPECIFIED

Body Breadth :

0.606 inch

ECCN Code :

EAR99

Connector Type :

BOARD CONNECTOR

Body Depth :

0.53 inch

Pbfree Code :

yes

Mating Information :

No

Mating Contact Pitch :

0.079 inch

Filter Feature :

No

HTS Code :

8536.69.40.40

Contact Style :

SQ PIN-SKT

PCB Contact Pattern :

RECTANGULAR

Terminal Pitch :

2 mm

Termination Type :

Press Fit

Withdrawl Force-Min :

.7506 N

Mounting Type :

BOARD

DIN Conformance :

No

Mixed Contacts :

No
