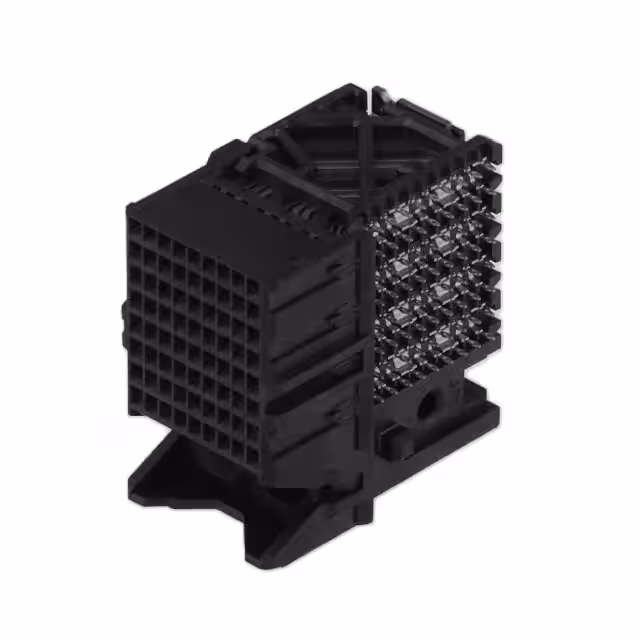

0761703038
Or copy the link below:
- Mfr.Part #
- 0761703038
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 72POS EDGE MNT
- Stock
- 1,353
- In Stock ：
- 1,353
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- Connector Style :
- Impact, Guide Left
- Pbfree Code :
- yes
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~85°C
- Termination :
- Press-Fit
- RoHS Status :
- ROHS3 Compliant
- Mixed Contacts :
- No
- MIL Conformance :
- No
- Total Number of Contacts :
- 72
- Number of Positions Loaded :
- All
- Voltage - Rated :
- 30V
- Filter Feature :
- No
- Option :
- GENERAL PURPOSE
- Packaging :
- Tray
- DIN Conformance :
- No
- Number of Rows :
- 9
- Connector Type :
- Receptacle, Female Sockets
- Series :
- Impact 76170
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Number of Columns :
- 8
- Color :
- Black
- Feature :
- Board Guide
- Factory Lead Time :
- 20 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Contact Layout, Typical :
- 24 Differential Pairs
- Contact Material :
- NOT SPECIFIED
- IEC Conformance :
- No
- Pitch :
- 0.053 1.35mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Positions :
- 72
- Contact Finish :
- Gold
- Datasheets
- 0761703038
Impact 76170 Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 72 Positions Pitch: 0.053 1.35mm -55°C~85°C Tray Board Edge, Through Hole, Right Angle
0761703038 Overview
The packaging contains Receptacle, Female Sockets.There is a Board Edge, Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tray.Product number Impact 76170 belongs to the Impact 76170 Series.In many ways, it is more powerful due to its Board Guide feature.This device operates at a temperature of -55°C~85°C.
0761703038 Features
Impact 76170 series
0761703038 Applications
There are a lot of Molex
0761703038 Backplane Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
