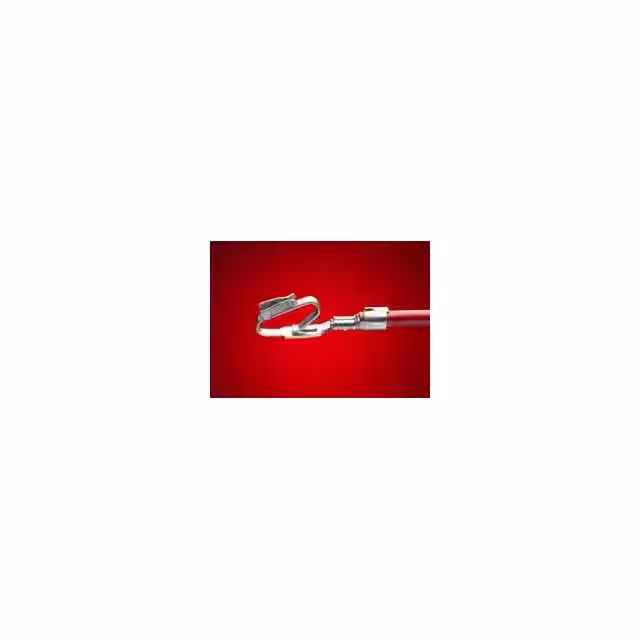

08-56-0139
Or copy the link below:
- Mfr.Part #
- 08-56-0139
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- KK 156 TERM CRP 18-24 AWG TRIFUR
- Stock
- 3,490
- In Stock ：
- 3,490
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Unclassified
- RoHS :
- Compliant
- Series :
- *
- Rated Current :
- 5 A
- Gender :
- FEMALE
- Product Depth (mm) :
- 2.72(mm)
- Contact Design :
- LOOSE
- Terminal Type :
- Crimp
- Wire Gauge :
- 18-20(AWG)
- Packaging :
- Bag
- Cable Entry-Max :
- 0.095 inch
- Contact Resistance :
- 6 mΩ
- DIN Conformance :
- No
- Used With :
- 6442, 41695, 7660 AND 7674
- Connector Support Type :
- CONNECTOR ACCESSORY
- Shielding :
- Unshielded
- Connector Type :
- Connector, PCB, Signal
- Shielded :
- No
- Additional Feature :
- CONTACT FINISH: GOLD
- Body Orientation :
- Straight
- Length :
- 13.7 mm
- Rated Voltage(AC) :
- 250 V
- Termination :
- Crimp
- Termination Method :
- Crimp
- Product Status :
- Active
- Mounting Style :
- CABLE
- Wire Gauge (Max) :
- 18 AWG
- MIL Conformance :
- No
- IEC Conformance :
- No
- Assembly Item Name :
- Contact
- Country of Origin :
- US
- Mount :
- CABLE
- Plating :
- Nickel
- HTS Code :
- 8536.90.40.00
- Package :
- Box
- Contact Material :
- Brass
- Product Length (mm) :
- 13.7(mm)
- Contact Type :
- Power
- ECCN Code :
- EAR99
- Wire Gauge (Min) :
- 20 AWG
- Contact Gender :
- SKT
- Depth :
- 2.72 mm
- Material :
- Brass
- Manufacturer Lifecycle Status :
- Obsolete (Last Updated: 2 years ago)
- Orientation :
- Straight
- Lifecycle Status :
- Obsolete (Last Updated: 2 years ago)
- Reach Compliance Code :
- Unknown
- Contact Plating :
- Gold
- Contact Style :
- BELLOWED TYPE
- Manufacturer :
- Molex
- Datasheets
- 08-56-0139
