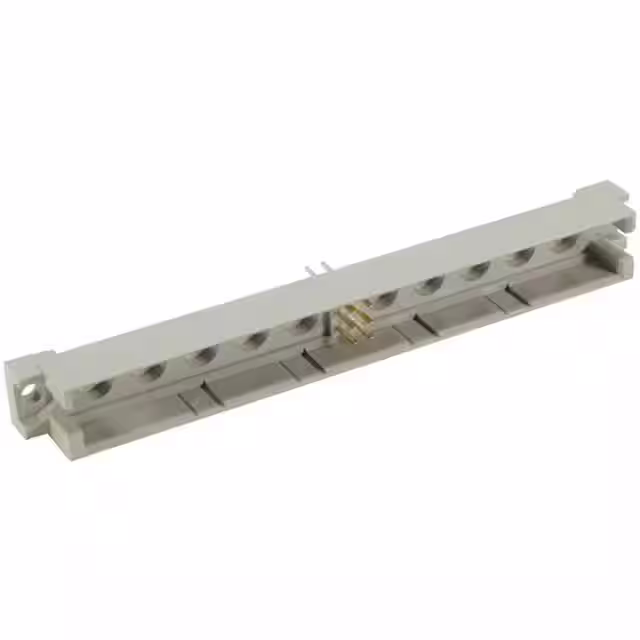

09731066903

Manufacturer :

HARTING

Product Category :

DIN 41612

Name of Rows Loaded :

A,B,C

Series :

DIN 41612

Level, Class :

2

Mating Contact Row Spacing :

0.1 inch

Contact Material :

COPPER ALLOY

Number of Positions Loaded :

6

Material Flammability Rating :

UL94 V-0

Durability :

400 Cycles

Current Rating (Amps) :

2A

MIL Conformance :

No

Total Number of Contacts :

16

Insulation Resistance :

1000000000000Ohm

Pitch :

0.100 2.54mm

Body Depth :

0.457 inch

PCB Contact Pattern :

RECTANGULAR

Packaging :

Bulk

Termination :

Solder

Option :

GENERAL PURPOSE

Reference Standard :

UL, CSA

Length - Termination :

0.157 inch

ECCN Code :

EAR99

Number Of PCB Rows :

3

IEC Conformance :

No

JESD-609 Code :

e3

Connector Type :

Header, Male Pins

Mounting Type :

Through Hole

Operating Temperature :

-55°C~125°C

DIN Conformance :

yes

Factory Lead Time :

9 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Filter Feature :

No

Dielectric Withstanding Voltage :

1000VAC V

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

Mixed Contacts :

yes

Number of Positions :

16 (6 + 10 Power)

Polarization Key :

ENDS

Style :

M

Number of Rows :

3

Contact Finish :

Gold
