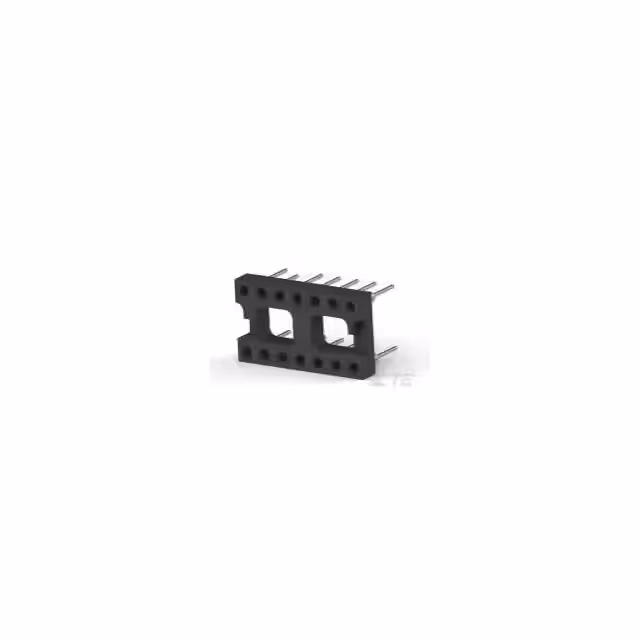

1-1437539-6
Or copy the link below:
- Mfr.Part #
- 1-1437539-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 814-AG11D-ES=SOCKET ASSY
- Stock
- 1,228
- In Stock ：
- 1,228
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Unclassified
- Termination Method :
- Solder
- Product Height (mm) :
- 4.57(mm)
- Row Spacing (mm) :
- 7.74(mm)
- Number of Contact Rows :
- 2
- Rad Hardened :
- No
- Body Breadth :
- 0.4 inch
- Number of Contacts :
- 14
- Termination Type :
- Solder
- Terminal Pitch :
- 2.54 mm
- ECCN Code :
- EAR99
- PCB Contact Pattern :
- RECTANGULAR
- Insulation Resistance :
- 5000000000 Ω
- Grid Size :
- Not Required
- Insulation Material :
- Polyester
- HTS Code :
- 8536.69.40.40
- Body Orientation :
- Straight
- Mating Contact Pitch :
- 0.1 inch
- Gender :
- SKT
- Type :
- DIP Socket
- Current Rating :
- 3 A
- Housing Material :
- Polyester
- Product Length (mm) :
- 17.78(mm)
- Contact Plating :
- Gold Over Nickel
- PCB Contact Row Spacing :
- 0.305 mm
- Contact Material :
- NOT SPECIFIED
- Device Type Used On :
- DIP14
- Mounting Style :
- Straight
- Product Depth (mm) :
- 10.16(mm)
- Packaging :
- Box/Tube
- Contact Style :
- RND PIN-SKT
- Pitch (mm) :
- 2.54(mm)
- Operating Temp Range :
- -55C to 105C
- Device Socket Type :
- IC SOCKET
- Contact Resistance Max :
- 10(mohm)
- Body Depth :
- 0.18 inch
- Dielectric Withstanding Voltage :
- 1000VAC V
- Reach Compliance Code :
- not_compliant
- Additional Feature :
- STANDARD: UL 94V-0
- Datasheets
- 1-1437539-6
1-1437539-6 datasheet pdf and Integrated Circuits (ICs) product details from TE Connectivity stock available at
