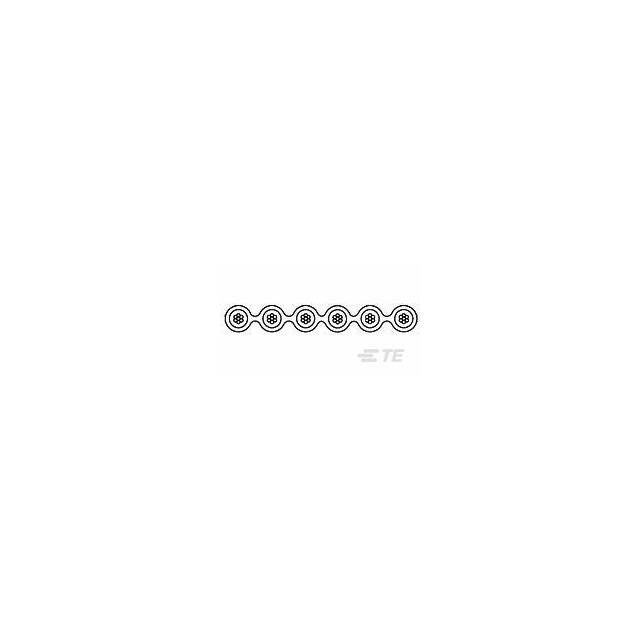

1-57040-5

Manufacturer :

TE Connectivity

Product Category :

Unclassified

Radiation Hardening :

No

Automotive :

No

Series :

*

Product Depth (mm) :

19.05

Cable Pitch :

1.27 mm

Max Voltage Rating (AC) :

300 V

Product Status :

Active

ECCN (US) :

EAR99

Jacket Color :

Gray/Red

Package :

Box

Cable Length :

30.48 m

Approvals :

CSA, UL

Maximum Voltage Rating :

300VAC

Width :

17.78 mm

Color :

Grey

Number of Conductors :

15

Product Height (mm) :

0.89

Impedance :

105 Ω

Conductor Material :

Tinned Copper

Strand Size :

36 AWG

Maximum Operating Temperature (°C) :

105

HTS :

8544.49.30.80

Impedance (Ohm) :

105

Mount :

CABLE

Contact Plating :

Tin

Type :

Flat Cable

Wire/Cable Diameter :

19.05 mm

Min Operating Temperature :

-20 °C

Wire/Cable Gauge :

28 AWG

Wire/Cable Type :

Ribbon

Cable Pitch (mm) :

1.27

ELV :

Compliant

Shielding :

Unshielded

Current Rating :

2 A

Minimum Operating Temperature (°C) :

-20

Propagation Delay :

1.45 ns

Length :

30.48 m

Factory Cable Length (m) :

30.48

EU RoHS :

Compliant

Pitch :

1.27 mm

Packaging :

Tape and Reel

Capacitance :

44.3 pF

Jacket Material :

POLYVINYL CHLORIDE

Max Operating Temperature :

105 °C

Height :

890 μm

Bunch Stranding :

7X36

Voltage Rating :

30 V

Depth :

19.05 mm

Size (AWG) :

28

Number of Strands :

7

PPAP :

No

Voltage Rating (DC) :

300 V

Insulation Material :

PVC

Lifecycle Status :

Production (Last Updated: 2 years ago)

RoHS :

Compliant
