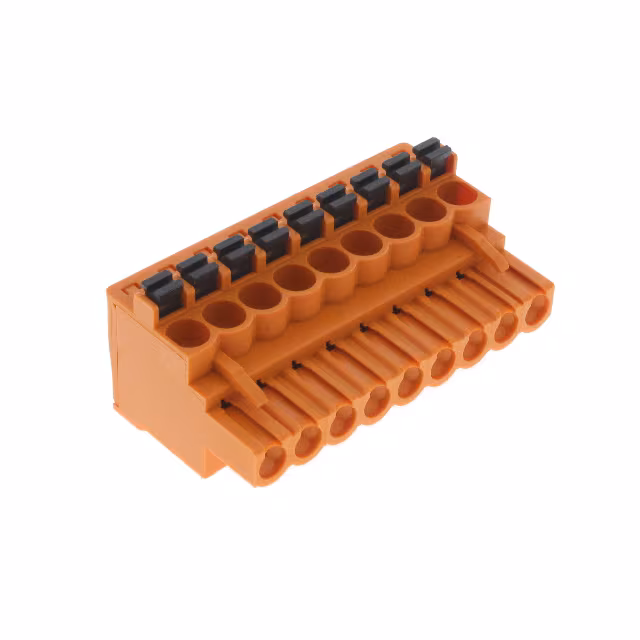

1001600000
Or copy the link below:
- Mfr.Part #
- 1001600000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 9POS 5.08MM
- Stock
- 68
- In Stock ：
- 68
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Wire Gauge (Max) :
- 26 AWG
- Feature :
- Retention Latches (Wire Side)
- Published :
- 2009
- Wire Gauge or Range - mm² :
- 0.2-2.5mm2
- Mount :
- Free Hanging
- Pitch :
- 0.200 5.08mm
- Material Flammability Rating :
- UL94 V-0
- Voltage :
- 300V
- Safety Approval :
- UL
- Color :
- Orange
- Contact Mating Finish :
- Tin
- Wire Gauge or Range - AWG :
- 12-26 AWG
- Current :
- 10A
- Contact Material :
- COPPER ALLOY
- Operating Temperature :
- -50°C~100°C
- RoHS Status :
- RoHS Compliant
- Voltage - Rated :
- 300V
- Stripping Length :
- 10mm
- Number of Positions Per Level :
- 9
- Termination :
- Screwless
- Factory Lead Time :
- 12 Weeks
- Ingress Protection :
- IP20
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Number of Ways :
- 9
- Current - UL :
- 18.5A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge (Min) :
- 12 AWG
- Series :
- Omnimate BL
- Flammability Rating :
- UL94 V-0
- Approval Agency :
- CSA, cURus
- Number of Decks :
- 1
- Voltage - IEC :
- 400V
- Packaging :
- Box
- Mounting Type :
- Free Hanging (In-Line)
- Type :
- Plug, Female Sockets
- Current - IEC :
- 24A
- Number of Levels :
- 1
- Plug Wire Entry :
- 90°
- Insulation Height :
- 0.815 20.70mm
- Number of Rows :
- 1
- Termination Style :
- Screwless - Leg Spring, Push-In Spring
- Current Rating :
- 19A
- Datasheets
- 1001600000
Box 0.200 5.08mm Orange 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate BL Polybutylene Terephthalate (PBT) Tin Copper Alloy
1001600000 Overview
This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Box case is necessary to package the product.There is a product in the Omnimate BL Series.There are a number of advantages to its Retention Latches (Wire Side) feature.Part Free Hanging is mounted to the part.As a result, the device runs at -50°C~100°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
1001600000 Features
Omnimate BL series
1001600000 Applications
There are a lot of Weidmüller
1001600000 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
