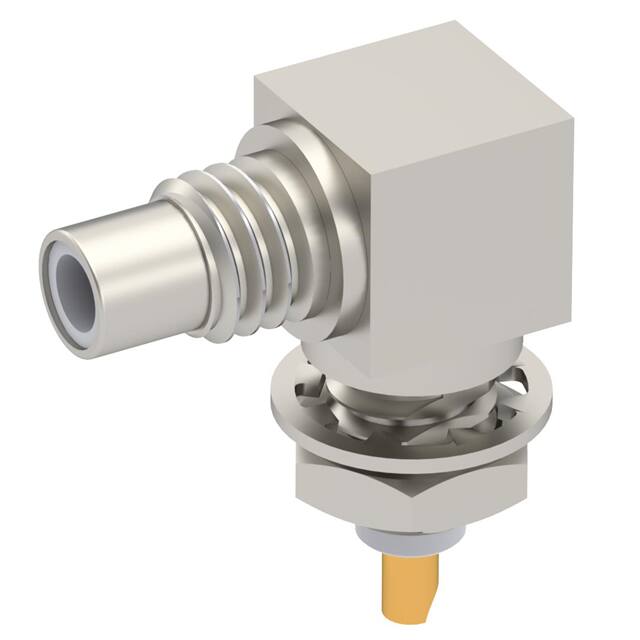

1012-7511-000
Or copy the link below:
- Mfr.Part #
- 1012-7511-000
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SMC M RA BHD SP
- Stock
- 27
- In Stock ：
- 27
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Housing Color :
- Silver
- Option :
- GENERAL PURPOSE
- Contact Finish - Mating :
- NOT SPECIFIED
- Connector Type :
- Jack, Male Pin
- Shield Termination :
- Solder
- Panel Mount :
- No
- Frequency (Max) :
- 10GHz
- Body Material :
- Brass
- Center Contact Plating :
- Gold
- Insertion Loss :
- 0.50dB
- RoHS Status :
- RoHS Compliant
- Mounting Feature :
- Bulkhead - Rear Side Nut
- Number of Ports :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Threaded
- Mounting Type :
- Panel Mount, Right Angle
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Includes :
- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Gender :
- Male
- IEC Conformance :
- No
- Contact Termination :
- Solder Cup
- Impedance :
- 50Ohm
- MIL Conformance :
- yes
- Body Finish :
- Nickel
- JESD-609 Code :
- e4
- Body/Shell Style :
- Receptacle
- Operating Temperature :
- -65°C~165°C
- Mating Cycles :
- 500
- Packaging :
- Bulk
- Filter Feature :
- No
- Insulation Material :
- POLYTETRAFLUORO ETHYLENE
- Factory Lead Time :
- 10 Weeks
- Orientation :
- RIGHT ANGLE
- DIN Conformance :
- No
- Connector Style :
- SMC
- Contact Material :
- NOT SPECIFIED
- Datasheets
- 1012-7511-000
Jack, Male Pin Threaded 50Ohm Bulk SMC Solder Cup 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C
1012-7511-000 Overview
The packaging is Jack, Male Pin.Mounting type Panel Mount, Right Angle is selected for the device.Packaged in a Bulk case.You can manage a bunch of stuff with its 1 ports.Device runs in -65°C~165°C operating temperature.
1012-7511-000 Features
1012-7511-000 Applications
There are a lot of Radiall USA, Inc.
1012-7511-000 Coaxial Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
