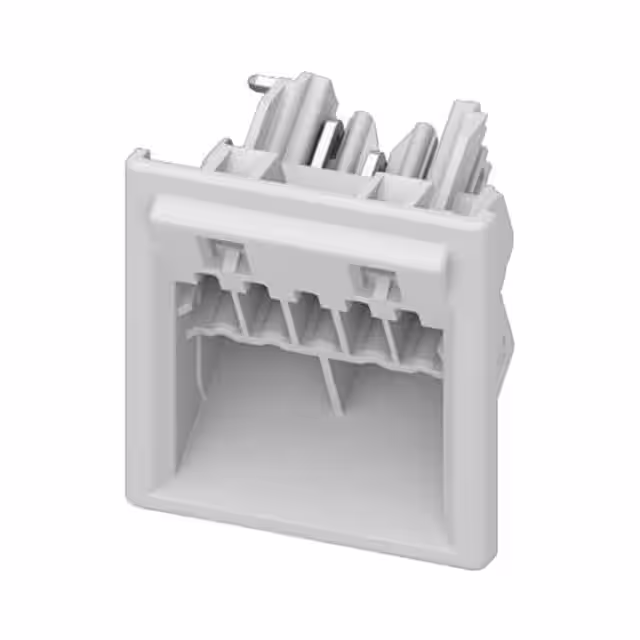

1084018

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Pitch :

3.5mm

Color :

Gray

Pollution degree :

2

Mounting Style :

Through Hole

Wire Gauge or Range - AWG :

-

Number of Contacts :

5

Insulation Height :

0.882 (22.40mm)

Minimum Operating Temperature :

- 40 C

Operating Temperature :

-

Features :

-

Series :

ICC25

Product :

Headers

Manufacturer :

Phoenix Contact

Contact Tail Length :

0.110 (2.80mm)

Header Orientation :

90°, Right Angle

Wire Strip Length :

-

Housing Material :

Polyamide (PA), Nylon

Contact Material :

-

Material Flammability Rating :

UL94 V-0

Brand :

Phoenix Contact

Number of Positions :

5 Position

Product Type :

Headers and Wire Housings

Maximum Operating Temperature :

+ 100 C

Product Status :

Active

Type :

SHROUDED

Current - IEC :

8A

Voltage - IEC :

250 V

Screw Size :

-

Positions Per Level :

5

Number of Levels :

1

Subcategory :

Headers and Wire Housings

Contact Gender :

Pin (Male)

Inflammability class of insulation material according to with UL94 :

Other

Product Category :

Headers and Wire Housings

Contact Mating Finish :

Tin

Number of Rows :

1

Plug Wire Entry :

-

Torque - Screw :

-

Termination Style :

Solder Pin

Mounting Type :

Through Hole

Wire Gauge or Range - mm² :

-

Package :

Bulk

Ingress Protection :

-

RoHS :
