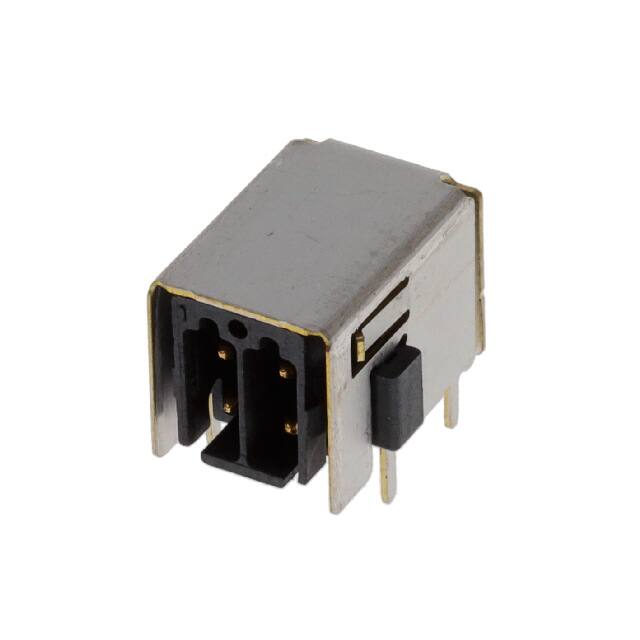

1097546

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Screw Size :

-

Voltage - IEC :

160 V

Voltage Rating :

160 V

Mounting Style :

Through Hole

Contact Tail Length :

0.079 (2.00mm)

Inflammability class of insulation material according to with UL94 :

V0

Number of Positions :

2 Position

Package :

Tape and Reel (TR);Cut Tape (CT);

Pitch :

2.54 mm

Voltage - UL :

150 V

Color :

Black

Header Orientation :

90°, Right Angle

Material of contact surface :

Gold

Wire Strip Length :

-

Current - IEC :

5A

Wire Gauge or Range - AWG :

-

Number of Levels :

2

Housing Material :

Liquid Crystal Polymer (LCP)

Plug Wire Entry :

-

Product Status :

Active

Material Flammability Rating :

UL94 V-0

Number of Rows :

2

Body Orientation :

Straight

Termination Style :

Solder Pin

Insulation Height :

0.326 (8.29mm)

Positions Per Level :

2

Current - UL :

6 A

Torque - Screw :

-

Number of Contacts :

4

Type of electric connection :

Other

Product :

Headers

Wire Gauge or Range - mm² :

-

Ingress Protection :

IP20

Rated surge voltage :

2.5

Features :

Solder Retention

Type of fastening :

Other

Operating Temperature :

-

Current Rating :

5 A

Pollution degree :

2

Series :

DMC

Over voltage category :

III

Contact Mating Finish :

Gold

Mounting Type :

Through Hole

Contact Material :

COPPER ALLOY

Connection Method :

-

Type :

Header, Male Pins, Shrouded (4 Side)

Rated current In :

5
