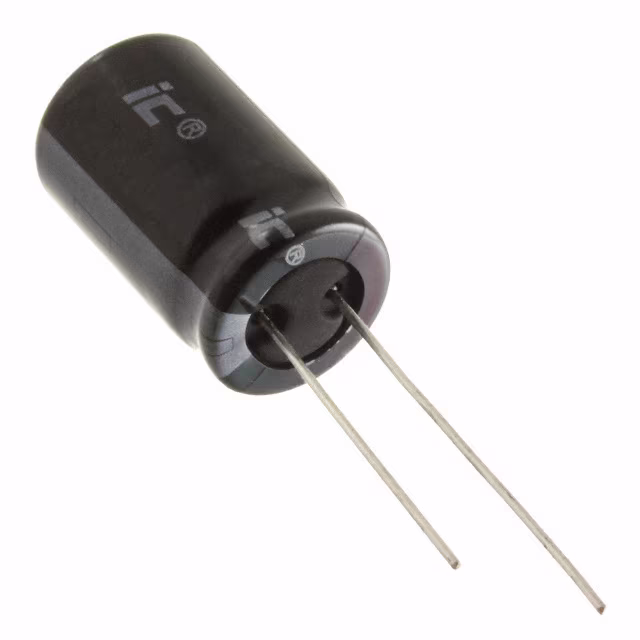

109CKH010M
Or copy the link below:
- Mfr.Part #
- 109CKH010M
- Manufacturer
- Cornell Dubilier Electronics
- Package / Case
- Radial, Can
- Datasheet
- Download
- Description
- CAP ALUM 10000UF 20% 10V RADIAL
- Stock
- 13,507
- In Stock ：
- 13,507
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cornell Dubilier Electronics
- Product Category :
- Aluminum Electrolytic Capacitors
- Dielectric Material :
- ALUMINUM (WET)
- Length :
- 35.5mm
- Terminal Pitch :
- 7.5mm
- ESR (Equivalent Series Resistance) :
- 66.3mOhm @ 120Hz
- Leakage Current :
- 3mA
- RoHS Status :
- ROHS3 Compliant
- Surface Mount :
- No
- Mounting Type :
- Through Hole
- Diameter :
- 18mm
- Number of Terminations :
- 2
- Terminal Finish :
- Matte Tin (Sn)
- Size / Dimension :
- 0.709Dia 18.00mm
- Capacitor Type :
- ALUMINUM ELECTROLYTIC CAPACITOR
- Lead Spacing :
- 0.295 7.50mm
- Rated (DC) Voltage (URdc) :
- 10V
- Ripple Current @ High Frequency :
- 2.842A @ 100kHz
- Pbfree Code :
- yes
- ECCN Code :
- EAR99
- Terminal Shape :
- Wire
- Operating Temperature :
- -40°C~105°C
- Polarization :
- Polar
- Tan Delta :
- 0.38
- Series :
- CKH
- Package / Case :
- Radial, Can
- JESD-609 Code :
- e3
- Lifetime @ Temp :
- 2000 Hrs @ 105°C
- Ripple Current @ Low Frequency :
- 2.03A @ 120Hz
- Tolerance :
- ±20%
- Applications :
- Bypass, Decoupling
- Published :
- 2016
- Factory Lead Time :
- 22 Weeks
- Capacitance :
- 10000µF
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 10V
- Height Seated (Max) :
- 1.437 36.50mm
- Datasheets
- 109CKH010M
CKH 10000μF Capacitor ±20% Bulk Through Hole 0.709Dia 18.00mm -40°C~105°C Polar Radial, Can
