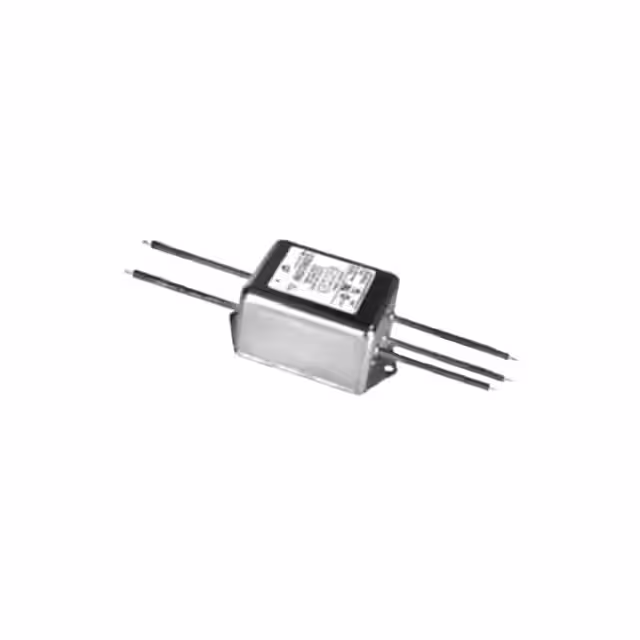

10ER3

Manufacturer :

TE Connectivity Corcom Filters

Product Category :

Power Line Filter Modules

Approval Agency :

CSA, UR, VDE

Package :

Bag

Current :

10A

Compliance :

UL

Configuration :

Two Stage

Frequency - Operating :

50/60Hz

Voltage Rating :

250 VAC

Operating Temperature Min Deg. C :

-10C

Termination :

Wire Lead

Series :

R

Width :

52.6 mm

Applications :

GENERAL PURPOSE

Min Operating Temperature :

-10 °C

ELV :

Compliant

Current Rating (Max) :

10(A)

Length :

85.1 mm

Reach Compliance Code :

Compliant

Brand :

TE Connectivity / PandB

Brand Name :

CII

Voltage Rating (AC) :

250 V

Filter Type :

SINGLE PHASE EMI FILTER

Frequency :

50 Hz

Lifecycle Status :

Production (Last Updated: 4 days ago)

Packaging :

Bulk

Current Rating :

10 A

RoHS :

Details

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

High Pot :

2250 V

Voltage Rating Max :

250VAC

Mounting Style :

Flange

Additional Feature :

WIRE LEADS TERMINAL

Operating Temp Range :

-10C to 40C

Physical Dimension :

L85.1XB52.6XH38.9 (mm)/L3.35XB2.07XH1.53 (inch)

Max Current Rating :

10 A

Product Depth (mm) :

85.1(mm)

Product Type :

Power Line Filters

Approvals :

UL; CSA; VDE

Rated Current :

10 A

Rated Voltage :

120 V

Product Status :

Active

Height :

38.9 mm

Inductance :

990μH

Voltage - Rated AC :

250V

Product Height (mm) :

38.9(mm)

Termination Style :

Wire Leads

Lead Free :

Lead Free

Max Voltage Rating (AC) :

250 V

Insertion :

2 dB

Mount :

Chassis Mount, Flanges

Operating Frequency :

50/60Hz Hz

Operating Temperature :

-10°C ~ 40°C

Product Category :

Power Line Filters

Factory Lead Time :

12 Weeks, 2 Days

Mounting Type :

Panel Mount

Subcategory :

Power Condition

Product Length (mm) :

52.6(mm)

Base Product Number :

10E

Max Operating Temperature :

40 °C

Operating Temperature Max Deg. C :

40C

Leakage Current :

360 uA

Voltage - Rated DC :

--
