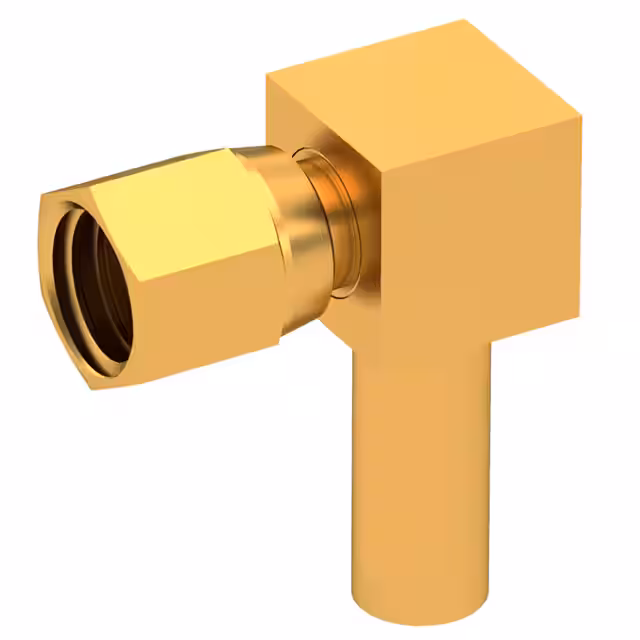

1105-1521-002
Or copy the link below:
- Mfr.Part #
- 1105-1521-002
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SMC / RIGHT ANGLE PLUG FEMALE CR
- Stock
- 15
- In Stock ：
- 15
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Product Length :
- 13.97 mm
- Center Contact Material :
- BERYLLIUM COPPER
- Base Product Number :
- 1105-1521
- Body Style :
- Screw On
- Package :
- Box
- Mounting Style :
- Cable Mount / Free Hanging
- Termination Style :
- Crimp
- Includes :
- -
- Termination Method :
- Crimp
- Features :
- -
- Gender :
- Receptacle
- Contact Plating :
- Gold
- Polarity :
- Reverse
- Product Type :
- RF Connectors / Coaxial Connectors
- Series :
- SMC
- Product :
- Connectors
- Terminate To :
- Flexible Cable
- Contact Material :
- BERYLLIUM COPPER
- Fastening Type :
- Threaded
- Number of Ports :
- 1
- Cable Type :
- RG-178, RG-196, M17/169, M17/93
- IP Rating :
- -
- Housing Color :
- Gold
- Ingress Protection :
- -
- Operating Temperature :
- -65 to 165 °C
- Shield Termination :
- Crimp
- Insertion Loss :
- 0.50dB
- Body Finish :
- Gold
- Center Contact Plating :
- Gold
- Body Material :
- Brass
- RoHS :
- Details
- RF Series :
- RP-SMC
- Connector Type :
- Plug, Female Socket
- Mounting Feature :
- -
- Orientation :
- RIGHT ANGLE
- Product Category :
- RF Connectors / Coaxial Connectors
- Operating Frequency :
- 0, 10 Hz
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Manufacturer :
- Radiall
- Mating Cycles :
- 500
- Mounting :
- Cable Mount
- Connector Style :
- SMC
- Subcategory :
- RF Interconnects
- Product Status :
- Active
- Frequency - Max :
- 10 GHz
- Cable Group :
- RG-178, 196
- Body Orientation :
- RIGHT ANGLE
- Brand :
- Radiall
- Contact Termination :
- Crimp
- Impedance :
- 50 Ohms
- Datasheets
- 1105-1521-002
1105-1521-002 datasheet pdf and Barrel - Audio Connectors product details from Radiall stock available at Xinshop
You may place an order without registering to Xinshop. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
