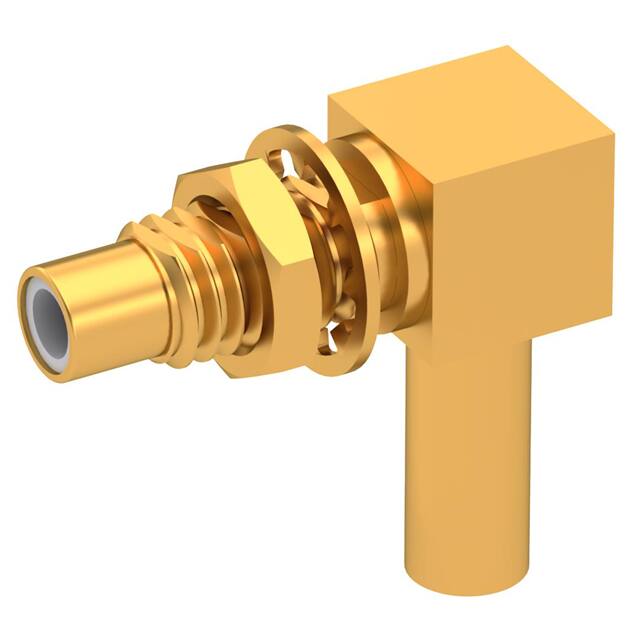

1106-1521-003
Or copy the link below:
- Mfr.Part #
- 1106-1521-003
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SMC M RA NA CR 2.6/50S
- Stock
- 30
- In Stock ：
- 30
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Option :
- GENERAL PURPOSE
- Mounting Type :
- Panel Mount, Right Angle
- RoHS Status :
- RoHS Compliant
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Center Contact Plating :
- Gold
- Connector Type :
- Jack, Male Pin
- Frequency (Max) :
- 10GHz
- Orientation :
- RIGHT ANGLE
- Body Material :
- Brass
- Cable Group :
- RG-174, 179, 316
- Impedance :
- 50Ohm
- Panel Mount :
- yes
- Contact Termination :
- Crimp
- Contact Material :
- NOT SPECIFIED
- Number of Ports :
- 1
- Insulation Material :
- POLYTETRAFLUORO ETHYLENE
- Voltage - Rated :
- 335V
- Operating Temperature :
- -65°C~165°C
- Mounting Feature :
- Bulkhead - Front Side Nut
- Filter Feature :
- No
- JESD-609 Code :
- e4
- Mating Cycles :
- 500
- Factory Lead Time :
- 14 Weeks
- Gender :
- Male
- Packaging :
- Bulk
- Contact Finish - Mating :
- NOT SPECIFIED
- Includes :
- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Connector Style :
- SMC
- Insertion Loss :
- 0.50dB
- MIL Conformance :
- yes
- DIN Conformance :
- No
- IEC Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Threaded
- Datasheets
- 1106-1521-003
Jack, Male Pin Threaded 50Ohm Bulk SMC Crimp 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C
1106-1521-003 Overview
Packaging is in the form of Jack, Male Pin.The mounting type of the device is Panel Mount, Right Angle.A Bulk case is used to package the product.There are 1 ports available for a variety of tasks to be performed on it.-65°C~165°C Operating Temperature is the default operating temperature for the device.
1106-1521-003 Features
1106-1521-003 Applications
There are a lot of Radiall USA, Inc.
1106-1521-003 Coaxial Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
