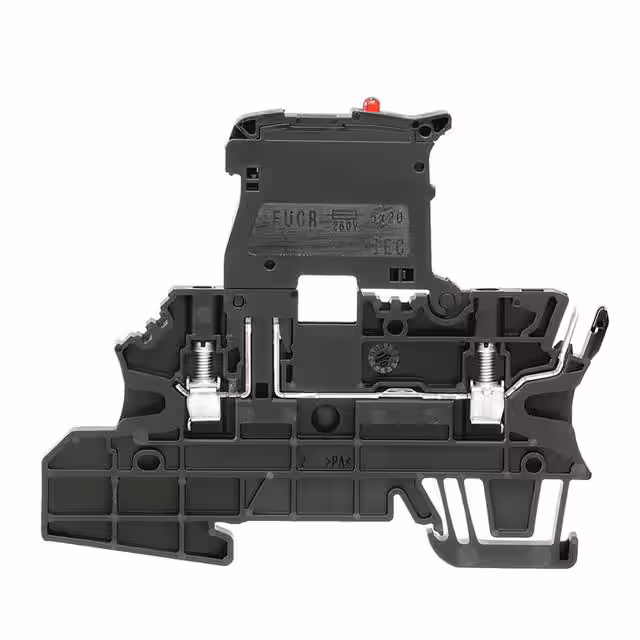

1163020000

Manufacturer :

Weidmuller

Product Category :

Specialized

Width :

5.08mm

RoHS Status :

RoHS Compliant

Length :

3.543 90.00mm

Number of Positions :

3

Approval Agency :

CE, CSA, cURus

Feature :

Disconnect, Fuse 5x20mm, LED

Mounting Type :

DIN Rail

Wire Cross Section :

4 mm2

Housing Color :

Black

Wire Gauge or Range - mm² :

0.5-4mm2

Current - IEC :

6.3A

Type :

Plug Connection

Termination Style :

Plug Receptacles, Screw

Published :

2012

Operating Temperature :

-50°C~120°C

Voltage - IEC :

250V

Voltage :

300V

Terminal Width :

5.1mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Levels :

1

Mount :

DIN Rail

Stripping Length :

10mm

Series :

W

Wire Gauge (Min) :

12 AWG

Flammability Rating :

UL94 V-0

Voltage - Rated :

8kV

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - AWG :

12-26 AWG

Height :

74mm

Termination :

Screw

Factory Lead Time :

8 Weeks

Current :

17A

Wire Gauge (Max) :

26 AWG

Current Rating :

6.3A

ECCN Code :

EAR99

Safety Approval :

UL; CSA; IEC

Material - Insulation :

Thermoplastic, Wemid
