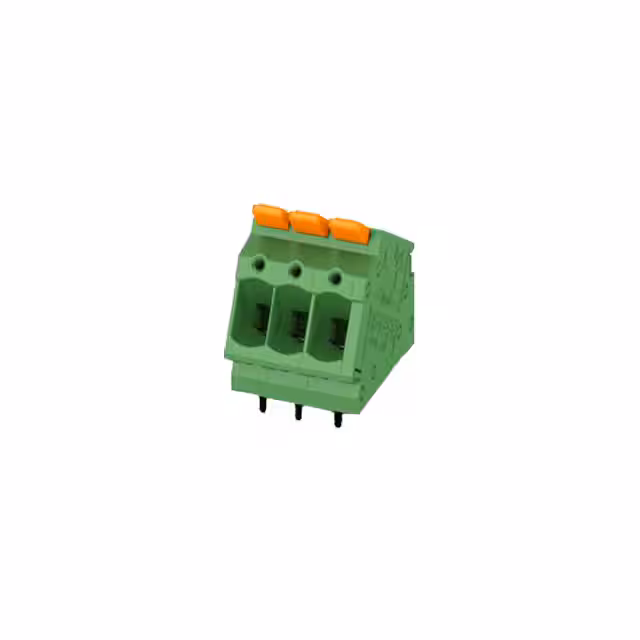

1190364

Manufacturer :

Phoenix Contact

Product Category :

Wire to Board

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 4

Screw Material - Plating :

-

Connectable conductor cross section solid-core :

0.2 - 4

Number of Contacts :

3

Over voltage category :

III

Package :

Bulk

Connection Method :

Lever

Product :

Fixed Terminal Blocks

Contact Material - Plating :

Copper Alloy - Tin Plated

Inflammability class of insulation material according to with UL94 :

V0

Contact Plating :

Tin

Connectable conductor cross section multi-wired :

4 - 4

Screw Thread :

-

Wire Termination :

Screwless - Leg Spring, Push-In Spring

Height :

23.78

Mounting Style :

PCB Mount

Clamp Material - Plating :

-

Wire Gauge :

12-24 AWG

Mounting Type :

Through Hole

Housing Material :

Polyamide (PA), Nylon

Termination Style :

Solder Pin

Number of Levels :

1

Product Status :

Active

Subcategory :

Terminal Blocks

Length :

21.35 mm

Connectable conductor cross section fine-strand with cable end sleeve :

0.2 - 2.5

Torque - Screw :

-

Current Rating :

24 A

Positions Per Level :

3

Number of Rows :

1

Series :

LPTA

Features :

Lever Actuated

Mating Orientation :

30° (150°) Angle with Board

Color :

Green

Mounting Angle :

45 Deg

Product Type :

Fixed Terminal Blocks

Pollution degree :

2

Rated surge voltage :

4

Pitch :

5mm

Operating Temperature :

-40°C ~ 105°C

Contact Material :

COPPER ALLOY

Rated current In :

24

Number of Positions :

3 Position

Voltage Rating :

400 V
