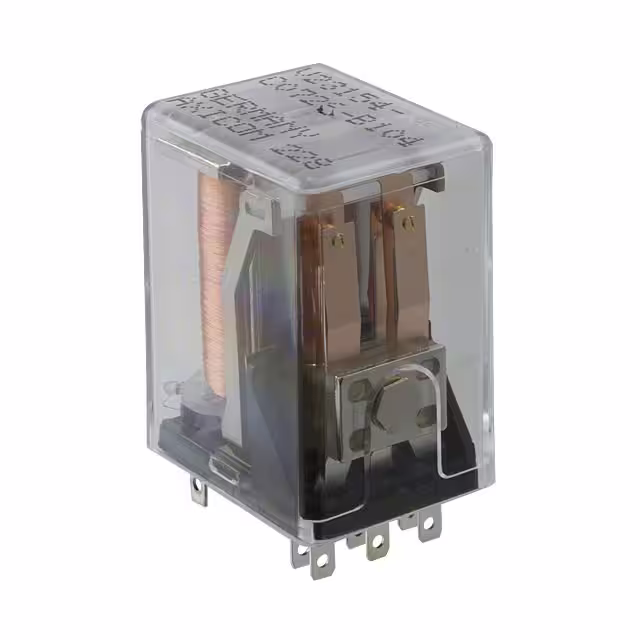

1393807-6
Or copy the link below:
- Mfr.Part #
- 1393807-6
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Dust Cover
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE DPDT 2A 48VDC
- Stock
- 6
- In Stock ：
- 6
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Signal Relays, Up to 2 Amps
- Contact Material :
- Gold Flash/Silver
- Mount :
- Plug-In, Socketable
- Contact Plating :
- Gold
- Contact Current Rating :
- 2 A
- Switching Voltage :
- 125VAC, 150VDC - Max
- Max Operating Temperature :
- 70 °C
- Operating Temp Range :
- -40C to 70C
- Series :
- V23154, AXICOM
- Mounting Style :
- Plug-In
- Release Time :
- 3ms
- Termination :
- Solder
- LED Indicator :
- No
- Manufacturer :
- TE Connectivity
- Brand :
- TE Connectivity / Axicom
- Power Consumption :
- 700 mW
- Mounting Type :
- Socketable
- Base Product Number :
- 1393807
- Contact Voltage Rating (DC) :
- 150 V
- Product Depth (mm) :
- 24 mm
- Turn On Voltage (Max) :
- 23 VDC
- Coil Voltage DC :
- 48V
- Coil Current :
- 15 mA
- Must Operate Voltage :
- 23 VDC
- Packaging :
- Box/Carton
- Coil Type :
- Non Latching
- Contact Form :
- 2 Form C
- Depth :
- 24 mm
- Product Length :
- 19 mm
- Throw Configuration :
- DPDT
- Rad Hardened :
- No
- Voltage Rating (VAC) :
- 125V
- Seal :
- Unsealed
- Product :
- Communications Relays
- Switch Configuration :
- SINGLE SP6T
- Product Type :
- PCB Relays
- Height :
- 30 mm
- Subcategory :
- Relays
- Product Length (mm) :
- 24 mm
- Features :
- --
- Seal Rating :
- -
- RoHS :
- Details
- Package / Case :
- Dust Cover
- Minimum Isolation Voltage :
- 80 dB
- Width :
- 18.9992 mm
- Coil Insulation :
- -
- Lifecycle Status :
- Production (Last Updated: 5 days ago)
- Voltage Rating (AC) :
- 125 V
- Number of Pins :
- 10
- Mounting :
- Plug-In
- Product Height (mm) :
- 35.5 mm
- Must Release Voltage :
- -
- Contact Arrangement :
- DPDT
- Operate Time :
- 7.5 ms
- Operating Temperature :
- -40 to 70 °C
- Max Voltage Rating (DC) :
- 150 V
- Coil Suppression Diode :
- No
- Voltage Rating (VDC) :
- 150V
- Voltage Rating (DC) :
- 150 V
- Max Voltage Rating (AC) :
- 125 V
- Manufacturer Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Switching Speed :
- 15000000 ns
- Operating Supply Voltage :
- 28 V
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- --
- Relay Type :
- GENERAL PURPOSE
- Coil Voltage (DC) :
- 48 V
- Coil Power :
- 720 mW
- Pin Count :
- 10
- Max Current Rating :
- 2 A
- Package :
- Bulk
- Min Operating Temperature :
- -40 °C
- Coil Voltage :
- 48VDC
- Weight :
- 20 g
- Termination Style :
- Solder Lug
- Contact Rating (Current) :
- 2A
- Contact Termination :
- Solder Pin
- Relay Construction :
- Non-Latching
- Radiation Hardening :
- No
- Coil Resistance :
- 3.2 kOhm
- Number of Switches :
- 1
- Length :
- 24.003 mm
- Turn Off Voltage (Min) :
- --
- Product Category :
- Low Signal Relays - PCB
- Product Status :
- Active
- Type :
- Signal Relay
- Datasheets
- 1393807-6
