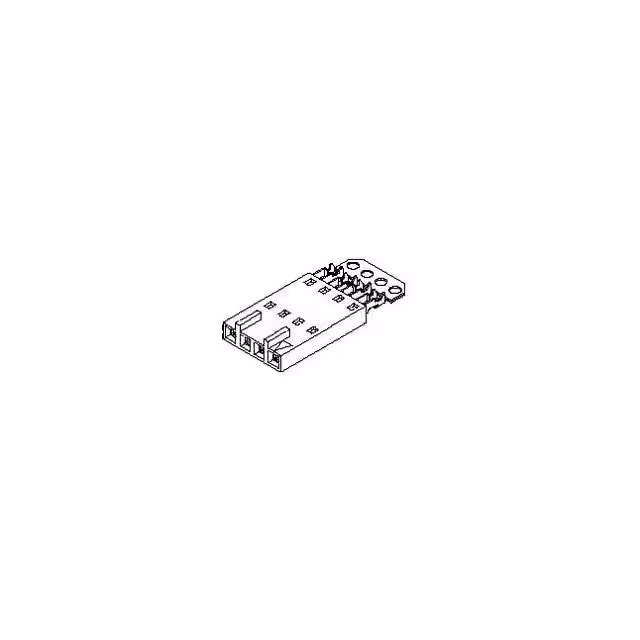

14-60-0169

Manufacturer :

Molex

Product Category :

Free Hanging, Panel Mount

Rated Current (Signal) :

3 A

Voltage Rating Max :

250V

Mounting Style :

CABLE

Product Status :

Active

Mixed Contacts :

No

DIN Conformance :

No

Reliability :

COMMERCIAL

Current Rating (Max) :

1.8/Contact(A)

Body Depth :

0.6 inch

Operating Temp Range :

-40C to 105C

Body/Shell Style :

PLUG

Polarization Key :

POLARIZED HOUSING

Pbfree Code :

yes

Plating Thickness :

150u inch

Pitch (mm) :

2.54(mm)

Product :

Wire Housings

Wire/Cable Type :

Discrete Wire

Contact Gender :

Socket (Female)

Subcategory :

Headers and Wire Housings

Product Depth (mm) :

15.24(mm)

Mounting Type :

CABLE

Pitch :

2.54 mm

Contact Resistance Max :

15(mohm)

Product Type :

Headers and Wire Housings

UL Flammability Code :

94V-0

Number of Contacts :

16(POS)

Contact Material :

Phosphor Bronze

Contact Design :

PREASSEM CONN

Contact Style :

SQ PIN-SKT

Number of Positions :

16 Position

Housing Material :

Polyester

Tradename :

C-Grid, SL

Mating Contact Pitch :

0.1 inch

Durability :

25 Cycles

Type :

IDC Connector

Contact Finish Termination :

Gold

Product Length (mm) :

40.61(mm)

Flammability Rating :

UL 94 V-0

Insulator Color :

Black

Reference Standard :

UL, CSA

Product Height (mm) :

3.53(mm)

Manufacturer :

Molex

Current Rating :

1.8 A

Termination Style :

IDC

RoHS :

Details

Body Orientation :

Straight

Series :

70400

Contact Pattern :

RECTANGULAR

Total Number of Contacts :

16

Contact Plating :

TIN OVER NICKEL

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Insulation Resistance :

10000000000 Ω

Option :

GENERAL PURPOSE

Additional Feature :

SL, POLARIZED

Package :

Box

Wire Gauge :

26 AWG

Voltage Rating :

250 V

Filter Feature :

No

Insertion Force-Max :

2.224 N

Mounting Angle :

Straight

Component Type :

Housing

Reach Compliance Code :

Unknown

Contact Resistance :

30 mΩ

Number of Rows :

1

Termination Type :

IDC

Connector Type :

BOARD CONNECTOR

Maximum Operating Temperature :

+ 105 C

Mounting Option 1 :

LOCKING

Brand :

Molex

Body Breadth :

0.139 inch

Product Category :

Headers and Wire Housings

Minimum Operating Temperature :

- 40 C

Number of Contact Rows :

1

Housing Color :

Black

Gender :

F

Termination Method :

IDT

IEC Conformance :

No

MIL Conformance :

No

Packaging :

Tube
