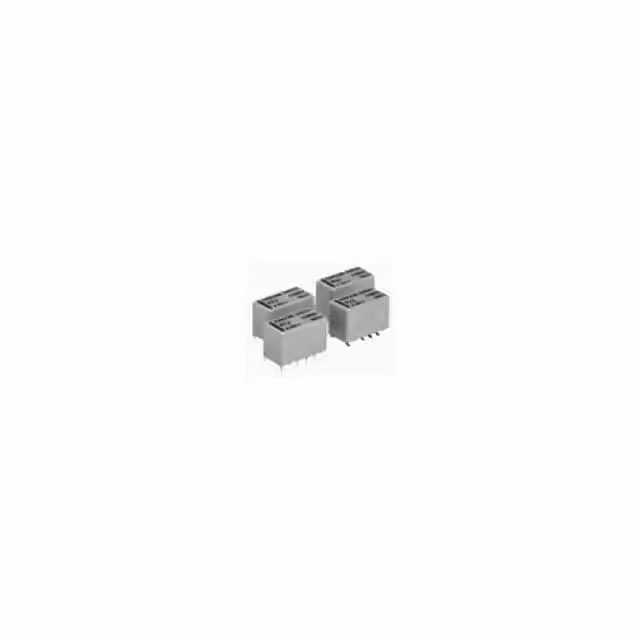

1462036-6
Or copy the link below:
- Mfr.Part #
- 1462036-6
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- D3503W=FU RELAY 300 MW 5 V-SMD
- Stock
- 800
- In Stock ：
- 800
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Unclassified
- Seal :
- Unsealed
- Rad Hardened :
- No
- Dropout Volt :
- 0.5VDC
- Contact Material :
- Silver Nickel/Gold
- Coil Voltage DC :
- 5V
- Product Depth (mm) :
- 7.5(mm)
- Type :
- Signal Relay
- Voltage Rating (VAC) :
- 250(V)
- Operating Temp Range :
- -55C to 85C
- Series :
- *
- Maximum Power Rating :
- 60W/62.5VA
- Contact Current Rating :
- 2(A)
- Voltage Rating (VDC) :
- 220(V)
- Package :
- Bulk
- Operate Time :
- 3(ms)
- LED Indicator :
- No
- Termination Style :
- J Legs
- Pick-up Voltage (Max) :
- 3.75VDC
- Packaging :
- Tape and Reel
- Contact Arrangement :
- DPDT
- Product Length (mm) :
- 15(mm)
- Pin Count :
- 8
- Product Height (mm) :
- 10(mm)
- Mounting Style :
- Surface Mount
- Relay Construction :
- Non-Latching
- Coil Suppression Diode :
- No
- Coil Current :
- 60.241(mA)
- Coil Resistance :
- 83(ohm)
- Contact Form :
- 2 Form C
- Product Status :
- Active
- Datasheets
- 1462036-6
1462036-6 datasheet pdf and Unclassified product details from TE Connectivity stock available at
