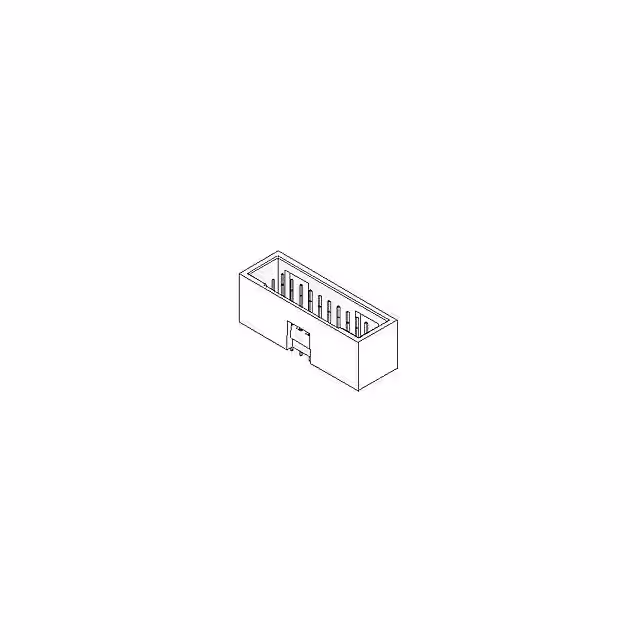

15-80-0143

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Plating Thickness :

15u inch

Terminal Length :

0.13 inch

Product Status :

Active

Gender :

HDR

Mounting Style :

Through Hole

Option :

GENERAL PURPOSE

ECCN Code :

EAR99

PCB Contact Row Spacing :

2.54 mm

Pitch (mm) :

2.54(mm)

Orientation :

Vertical

Reach Compliance Code :

Compliant

Product Height (mm) :

12.07(mm)

Termination Method :

Solder

Type :

Shrouded Header

Durability :

50 Cycles

Pbfree Code :

yes

Contact Pattern :

RECTANGULAR

Operating Temp Range :

-55C to 105C

Termination Type :

Solder

Insulation Resistance :

1000000000 Ω

Total Number of Contacts :

14

Rated Current (Signal) :

3 A

HTS Code :

8536.69.40.40

Packaging :

Tube

Mounting Type :

BOARD

Number Of PCB Rows :

2

Dielectric Withstanding Voltage :

600VDC V

IEC Conformance :

No

Mixed Contacts :

No

Series :

*

Number of Contacts :

14(POS)

Current Rating (Max) :

2.5/Contact(A)

DIN Conformance :

No

Product Depth (mm) :

10.67(mm)

Contact Resistance Max :

15(mohm)

Contact Style :

SQ PIN-SKT

Contact Resistance :

15 mΩ

Additional Feature :

LATCHED

Product Length (mm) :

20.63(mm)

Mating Contact Pitch :

0.1 inch

Housing Color :

Black

Subcategory :

Headers and Edge Type Connectors

Manufacturer :

Molex

Body Orientation :

Straight

Contact Material :

NOT SPECIFIED

Reference Standard :

UL

Body Depth :

0.475 inch

Number of Contact Rows :

2

Body/Shell Style :

Receptacle

UL Flammability Code :

94V-0

Package :

Box

MIL Conformance :

No

Application :

Signal

Mating Contact Row Spacing :

0.1 inch

Flammability :

94V-0

PCB Contact Pattern :

RECTANGULAR

Contact Gender :

Male

Reliability :

COMMERCIAL

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Terminal Pitch :

2.54 mm

Voltage Rating Max :

250V

Filter Feature :

No

Connector Type :

BOARD CONNECTOR

Contact Plating :

Gold Over Nickel
