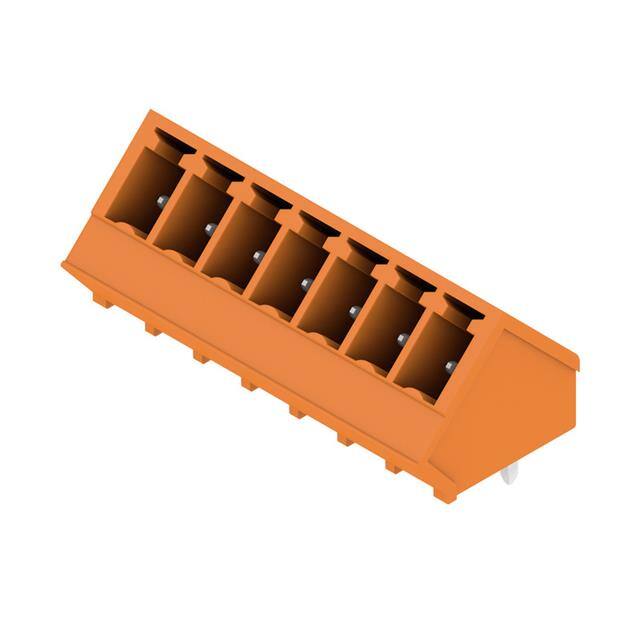

1642030000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Flammability Rating :

UL94 V-0

Width :

22mm

Pitch :

0.138 3.50mm

Moisture Sensitivity Level (MSL) :

Not Applicable

Voltage - IEC :

125V

Height :

24.2mm

Total Number of Contacts :

28

Packaging :

Bulk

Filter Feature :

No

Option :

GENERAL PURPOSE

RoHS Status :

RoHS Compliant

Current :

10A

Mounting Type :

Through Hole

Length :

166mm

IEC Conformance :

No

Number of Positions :

28

Header Orientation :

Vertical

Operating Temperature :

-20°C~100°C

Mount :

Through Hole

Contact Mating Finish :

Tin

Feature :

Mating and Mounting Flange

Termination Style :

Solder

Voltage :

300V

Current - IEC :

8A

Additional Feature :

High Density

MIL Conformance :

No

Type :

Header, Male Pins, Shrouded (4 Side)

Color :

Black

Number of Levels :

2

Lead Free :

Lead Free

Insulation Height :

0.953 24.20mm

UL Flammability Code :

94V-0

Number of Rows :

2

Insulation Resistance :

1MOhm

DIN Conformance :

No

Housing Material :

Polybutylene Terephthalate (PBT)

Contact Material :

COPPER ALLOY

Radiation Hardening :

No

Pbfree Code :

yes

Material Flammability Rating :

UL94 V-0

Positions Per Level :

14

Contact Tail Length :

0.177 4.50mm

Mixed Contacts :

No

Series :

Omnimate SL
