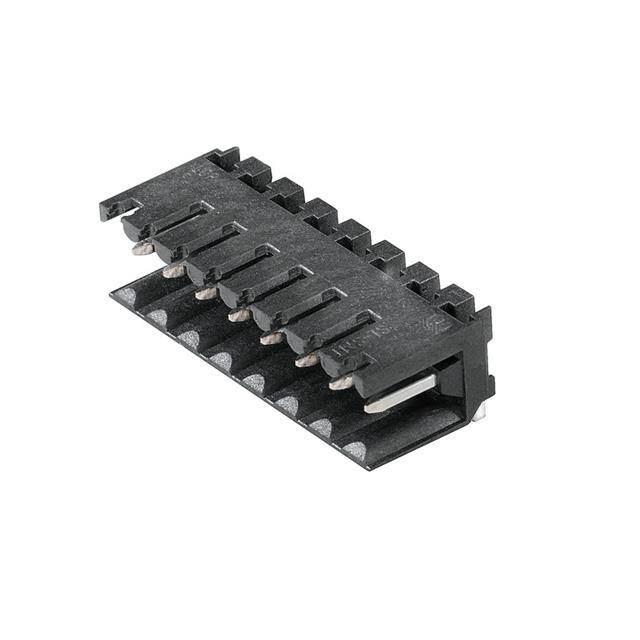

1644020000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Color :

Black

Mixed Contacts :

No

Current :

10A

Flammability Rating :

UL94 V-0

DIN Conformance :

No

Packaging :

Bulk

Contact Material :

COPPER ALLOY

Width :

13.2mm

Lead Free :

Lead Free

RoHS Status :

RoHS Compliant

Operating Temperature :

-20°C~100°C

MIL Conformance :

No

Mounting Type :

Through Hole

Voltage - UL :

300V

Number of Positions Per Level :

23

Insulation Height :

0.512 13.00mm

Moisture Sensitivity Level (MSL) :

Not Applicable

Voltage :

300V

Insulation Resistance :

1MOhm

Voltage - IEC :

125V

Pbfree Code :

yes

Type :

Header, Male Pins, Shrouded (4 Side)

Radiation Hardening :

No

Option :

GENERAL PURPOSE

IEC Conformance :

No

Total Number of Contacts :

23

Termination Style :

Solder

Contact Tail Length :

0.177 4.50mm

Series :

Omnimate SL

Number of Rows :

1

Additional Feature :

High Density

Header Orientation :

135°

Height :

13mm

Pitch :

0.138 3.50mm

Length :

96.3mm

Housing Material :

Polybutylene Terephthalate (PBT)

Current - IEC :

12A

Number of Levels :

1

Filter Feature :

No

UL Flammability Code :

94V-0

Feature :

Mating Flange

Contact Mating Finish :

Tin

Material Flammability Rating :

UL94 V-0

Mount :

Through Hole
