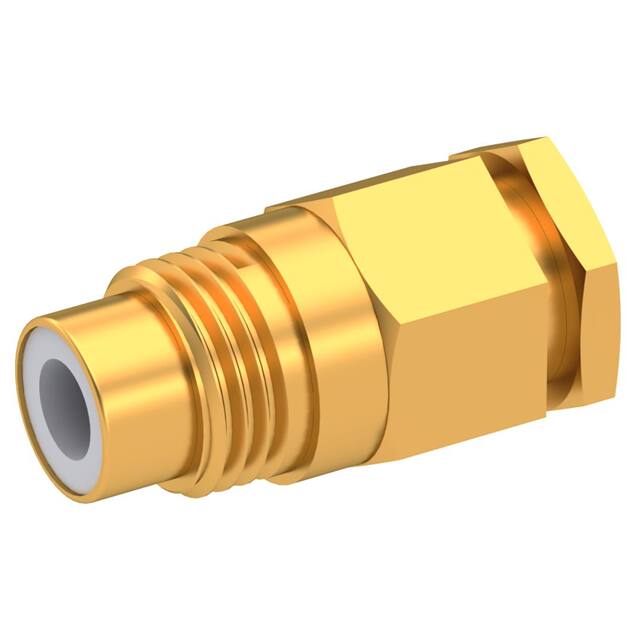

1701-1551-003
Or copy the link below:
- Mfr.Part #
- 1701-1551-003
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- 75 OHM / STRAIGHT JACK MALE CLAM
- Stock
- 24,747
- In Stock ：
- 24,747
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Gender :
- Jack (Pin)
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Series :
- -
- Housing Color :
- Gold
- Package :
- Bulk
- Option :
- GENERAL PURPOSE
- MIL Conformance :
- No
- RF Series :
- -
- ECCN Code :
- EAR99
- Contact Material :
- BERYLLIUM COPPER
- Filter Feature :
- No
- Product :
- Connectors
- Factory Lead Time :
- 5 Weeks
- Center Contact Material :
- BERYLLIUM COPPER
- Body Finish :
- Gold
- Shield Termination :
- Clamp
- Product Status :
- Active
- Impedance :
- 75Ohm
- Includes :
- -
- Ingress Protection :
- -
- Panel Mount :
- No
- Characteristic Impedance :
- 75 Ω
- Brand :
- Radiall
- Features :
- -
- Orientation :
- Straight
- Operating Frequency-Max :
- 2 GHz
- Cable Group :
- RG-174, 188, 316
- Packaging :
- Bulk
- Mounting Feature :
- -
- Subcategory :
- RF Interconnects
- Termination Style :
- Twist On
- Product Type :
- RF Connectors / Coaxial Connectors
- Product Category :
- RF Connectors / Coaxial Connectors
- Mounting Style :
- Cable Mount / Free Hanging
- Fastening Type :
- Threaded
- Base Product Number :
- 1701-1551
- Contact Termination :
- Solder
- Connector Style :
- -
- Additional Feature :
- APPLICABLE CABLE: RG179, INSERTION LOSS MAX AT 1.5 GHZ
- IEC Conformance :
- No
- Reach Compliance Code :
- Unknown
- HTS Code :
- 8536.69.40.10
- Frequency - Max :
- 2 GHz
- Manufacturer :
- Radiall
- Mounting Type :
- Free Hanging (In-Line)
- Mating Cycles :
- 500
- Contact Plating :
- Gold
- Body/Shell Style :
- JACK
- Center Contact Plating :
- Gold
- Connector Type :
- Jack, Male Pin
- DIN Conformance :
- No
- Contact Gender :
- Male
- Voltage Rating :
- 165 V
- Operating Temperature :
- -65°C ~ 165°C
- Number of Ports :
- 1
- Insertion Loss :
- 0.30dB
- Body Material :
- Brass
- Cable Type :
- RG-179, M17/94
- Coupling Type :
- Threaded
- Termination Type :
- Clamp
- Datasheets
- 1701-1551-003
Jack, Male Pin Threaded 75Ohm Bulk - Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C ~ 165°C
1701-1551-003 Overview
Packaging for this item is Jack, Male Pin.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the - Series.Among other features are APPLICABLE CABLE: RG179, INSERTION LOSS MAX AT 1.5 GHZ, to name only a few.The device has 1 ports for managing a variety of tasks.It operates at an operating temperature of -65°C ~ 165°C.
1701-1551-003 Features
- series
1701-1551-003 Applications
There are a lot of Radiall USA, Inc.
1701-1551-003 Coaxial Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
