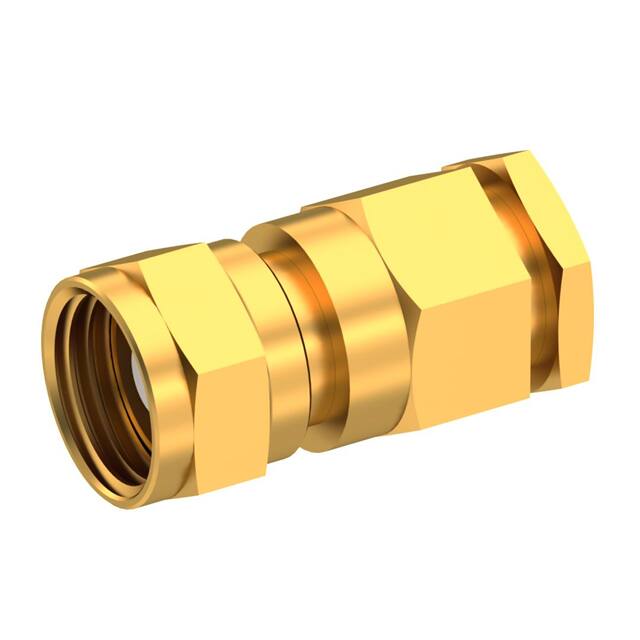

1702-1551-004

Manufacturer :

Radiall USA, Inc.

Product Category :

Coaxial Connector (RF) Assemblies

Mounting Style :

Cable Mount / Free Hanging

Filter Feature :

No

Mating Cycles :

500

Cable Type :

RG-180, 195

Cable Group :

RG-180

Package :

Bulk

Gender :

Plug (Socket)

DIN Conformance :

No

Panel Mount :

No

Termination Type :

Clamp

Product :

Connectors

Brand :

Radiall

Center Contact Plating :

Gold

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Shield Termination :

Clamp

Packaging :

Bulk

Option :

GENERAL PURPOSE

Reach Compliance Code :

Unknown

Series :

-

IEC Conformance :

No

Connector Style :

-

Includes :

-

Product Category :

RF Connectors / Coaxial Connectors

Orientation :

Straight

MIL Conformance :

No

Frequency - Max :

2 GHz

Number of Ports :

1

Body/Shell Style :

PLUG

Additional Feature :

APPLICABLE CABLES: RG180; RG195, INSERTION LOSS MAX AT 1.5 GHZ

Mounting Feature :

-

Product Status :

Active

IP Rating :

-

Contact Gender :

FEMALE

Center Contact Material :

BERYLLIUM COPPER

Base Product Number :

1702-1551

Connector Type :

Plug, Female Socket

Fastening Type :

Threaded

Contact Termination :

Compression

Subcategory :

RF Interconnects

Mounting Type :

Free Hanging (In-Line)

Factory Lead Time :

6 Weeks, 1 Day

Operating Temperature :

-65°C ~ 165°C

Features :

-

Ingress Protection :

-

Body Material :

Brass

RF Series :

-

Termination Style :

Clamp

Housing Color :

Gold

Insertion Loss :

0.30dB

Manufacturer :

Radiall

Body Finish :

Gold

Operating Frequency-Max :

2 GHz

Polarity :

Reverse

Voltage Rating :

165 V

Coupling Type :

Threaded

Characteristic Impedance :

75 Ω

Product Type :

RF Connectors / Coaxial Connectors

Impedance :

75Ohm
